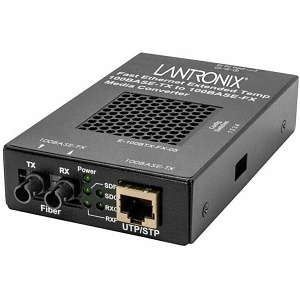

Lantronix E-100BTX-FX-05(HT)-EU E-100BTX Series 100Mbps Transmitter to Fiber Optic Converter (ST) with European Power Supply, High Temperature
Lantronix E-100BTX-FX-05(HT)-EU E-100BTX Series 100Mbps Transmitter to Fiber Optic Converter (ST) with European Power Supply, High Temperature
- Extended Temperature Capable: Designed to operate in environments where ambient temperatures can rise as high as 65°C (149°F)
- Auto-Negotiation
- Auto-MDI/MDIX
- Extended Temperature Capable: Designed to operate in environments where ambient temperatures can rise as high as 65°C (149°F)
- Auto-Negotiation
- Auto-MDI/MDIX
Sign In for Dealer Pricing
Become an ADI Customer- Extended Temperature Capable: Designed to operate in environments where ambient temperatures can rise as high as 65°C (149°F)
- Auto-Negotiation
- Auto-MDI/MDIX

Lantronix E-100BTX-FX-05(HT)-EU E-100BTX Series 100Mbps Transmitter to Fiber Optic Converter (ST) with European Power Supply, High Temperature
E-100BTX-FX-05(HT) | P6-BTXFX5HTU
Please sign in to view pricing and availability and to add to cart.
Product Overview
Unmanaged Hardened Fast Ethernet Media Converter
(1) 100Base-TX Port + (1) 100Base-FX Port
The E-100BTX-HT Series is a Hardened Ethernet stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into extreme 100Base-TX copper environments, by supporting an operating temperature range of -25°C to 65°C. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Main Features
- Extended Temperature Capable: Designed to operate in environments where ambient temperatures can rise as high as 65°C (149°F)
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far-End-Fault Detection
- Automatic Link Restoration
- Pause
General Information
Specifications
-
ADI Part Number P6-BTXFX5HTU Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number E100BTXFX05HTEU Packaged Quantity 2 Product Model E-100BTX-FX-05(HT) Product Name E-100BTX-FX-05(HT) Transceiver/Media Converter Product Series E-100BTX-HT Product Type Transceiver/Media Converter Weight 2lb
-
Media Type Supported Optical Fiber, Twisted Pair
-
TAA Compliant Yes
-
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of ST Ports 1
-
Network Technology 100Base-FX, 100Base-TX
-
Ethernet Technology 10 Gigabit Ethernet
-
Depth 4.7" Height 1" Width 3"
-
Input Voltage 120V AC, 230V AC Power Source AC, DC
-
Limited Warranty Lifetime
-
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents E-100BTX-FX-05(HT) Transceiver/Media ConverterPower Supply - Europe
