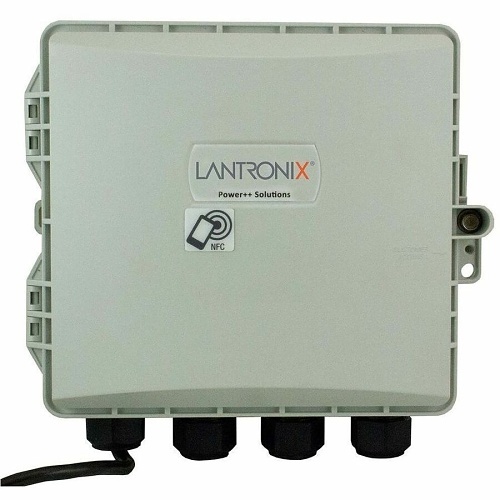

Image of P6-EM5LTACBR

Lantronix SESPM1040-541-LT-AC-BR SESPM Series AC-Powered Self-Enclosed Switch, 4-Port 10/100/1000Base-T POE++ with Power Cord

SESPM1040-541-LT-AC-BR|P6-EM5LTACBR

Lantronix SESPM1040-541-LT-AC-BR SESPM Series AC-Powered Self-Enclosed Switch, 4-Port 10/100/1000Base-T POE++ with Power Cord

SESPM1040-541-LT-AC-BR|P6-EM5LTACBR
Key Features
What's Included
  • Management: Web GUI, CLI, SNMP
  • Monitoring: SNMP, Syslog
  • Jumbo Frame support 10K bytes max
Key Features
What's Included
  • Management: Web GUI, CLI, SNMP
  • Monitoring: SNMP, Syslog
  • Jumbo Frame support 10K bytes max

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • Management: Web GUI, CLI, SNMP
  • Monitoring: SNMP, Syslog
  • Jumbo Frame support 10K bytes max
Lantronix

Lantronix SESPM1040-541-LT-AC-BR SESPM Series AC-Powered Self-Enclosed Switch, 4-Port 10/100/1000Base-T POE++ with Power Cord

SESPM1040-541-LT-AC-BR | P6-EM5LTACBR

Please sign in to view pricing and availability and to add to cart.

Accessories

Category 6 Patch Cables
W Box 0E-C6BL36 CAT6 Patch Cable, 3' (0.91m), 6-Pack, Blue
ADI # 0E-C6BL36
MODEL # 0E-C6BL36
Sign In for Dealer Pricing
Category 6 Patch Cables
W Box 0E-C6BL76 CAT6 Patch Cable, 7' (2.13m), 6-Pack, Blue
ADI # 0E-C6BL76
MODEL # 0E-C6BL76
Sign In for Dealer Pricing
Rack Cabinets & Frames
AVARRO RK-ERW12U 12 Unit Wall Mount Equipment Rack, Assembled
ADI # RK-ERW12U
MODEL # RK-ERW12U
Sign In for Dealer Pricing
Rack Cabinets & Frames
AVARRO RK-ERW6U 6 Unit Wall Mount Equipment Rack, Assembled
ADI # RK-ERW6U
MODEL # RK-ERW6U
Sign In for Dealer Pricing
Battery Packs
Image of WT-OVRC1500U
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

Self-Enclosed Managed Hardened Gigabit Ethernet PoE++ Switch

(4) 10/100/1000Base-T PoE++ Ports + (1) 10/100/1000Base-T or 100/1000Base-X SFP/RJ-45 Combo Port

Transition Networks' SESPM1040-541-LT-xx Switch is a Layer 2 managed switch with (4) 10/100/1000Base-T IEEE 802.3bt compliant PoE++ ports and (1) combination 10/100/1000Base-T RJ-45 or 100/1000Base-X SFP port (additional optional ports available), that is ideal for use in security and surveillance, PoE lighting, digital signage and many other applications. It is self-enclosed in an outdoor NEMA 4X/IP66 rated enclosure with 6KV surge protection on the AC line. Additional fuse protection on the PoE ports and included data port eliminates the need for external circuit cross protection between the attached powered device and the switch. It can be mounted on a wall or side of a building, or optional brackets are available for mounting on a pole. The switch is available in multiple configurations: as either an AC- or DC-powered power source (PSE) providing ?90 Watts per port (not to exceed 180 Watts total on the AC-powered unit or 240 Watts total on the DC-powered unit), or as a PoE-powered device (PD) which is also a PSE providing up to 80 Watts of total PoE power. The PD version requires PoE power from an IEEE 802.3bt Type 4 Class 8 compliant PSE, or it can receive power over copper cable running parallel to a fiber optic cable for data (i.e. composite cable). The PD also includes a 12V Aux port which can be used to provide auxiliary power to a PC, lighting or other accessories. A second combo 10/100/1000Base-T RJ-45 maintenance or 1000Base-X SFP uplink port can be activated by installing an optional Combo Port Module. Alternatively, an optional Passive PoE Combo Port Module can be added to provide 24VDC power to non-standard PoE powered devices such as wireless radios, eliminating the need for an additional external power source for those devices. An optional Digital Input/Output Module with four optical isolators configurable as either input or outputs provide connections for alarms, event notifications or other customer designated items. All versions are equipped with Near Field Communication (NFC) to allow simple and repeatable configuration of the switch using a user-friendly app on a mobile device prior to connecting or powering up the switch. Bluetooth Low Energy (BLE) allows remote access to alarm information or to read or change equipment settings without requiring physical access using ladders or scissor lifts. The switch also incorporates integrated management software for setup, monitoring and control of connected devices.

Main Features

  • Management: Web GUI, CLI, SNMP
  • Monitoring: SNMP, Syslog
  • Jumbo Frame support 10K bytes max
  • Auto-MDI/MDIX
  • IPv4
  • Secure Shell (SSH) / Secure Sockets Layer (SSL)
  • Authentication: RADIUS/TACACS+
  • Link Layer Discovery Protocol (LLDP)
  • Auto Power Reset (APR)
  • DHCP Server

General Information

Name: Lantronix SESPM1040-541-LT-AC-BR SESPM Series AC-Powered Self-Enclosed Switch, 4-Port 10/100/1000Base-T POE++ with Power Cord
Category: Lantronix, Video Surveillance, Data Comm & Networking, Networking Devices, Hubs, Routers & Switches, Network Switches, Network Switches
UPC Code: 783384248298
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources
