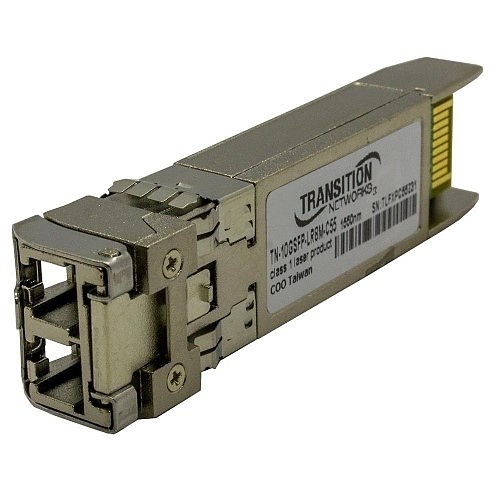

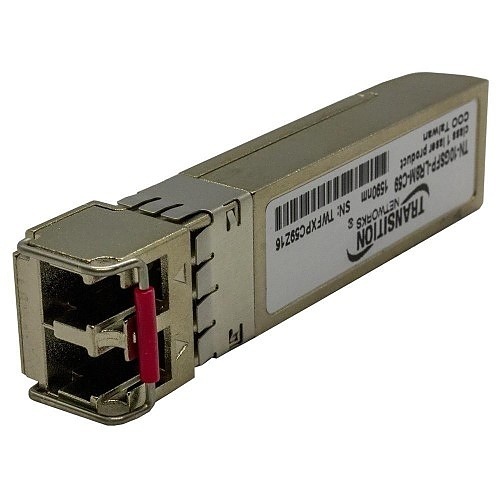

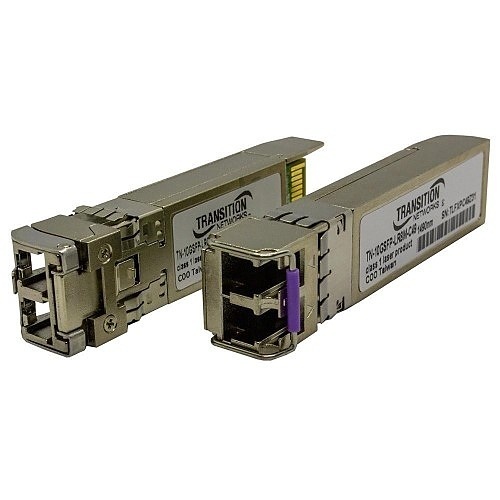

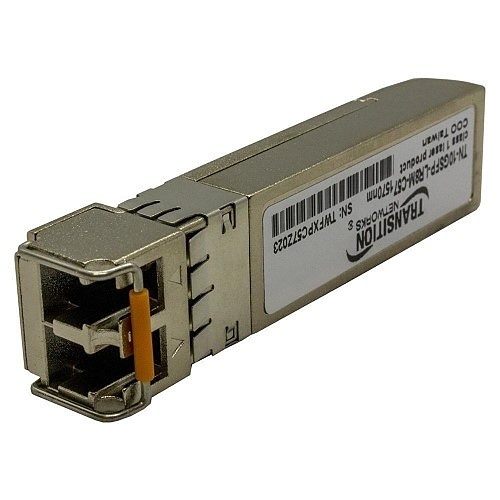

Lantronix TN-10GSFP-LR8M-C51 SFP Module Transceiver, SFP+ 1000BASE-ZX/10GBASE-ZR, 1G/10
TN-10GSFP-LR8M
|P6-GFPLR834
Shop All Lantronix
Lantronix TN-10GSFP-LR8M-C51 SFP Module Transceiver, SFP+ 1000BASE-ZX/10GBASE-ZR, 1G/10
TN-10GSFP-LR8M | P6-GFPLR834
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
10G Base-ZR/1000Base-ZX, SFP+ with DMI 1510nm single mode (LC) (80km/49.7 mi.) Link Budget- 22.0 dB.
Main Features
- SFP+ Optical Transceiver
- 10G Small Form-Factor Pluggable (SFP+) MSA Compliant
- SFF-8472 Digital Diagnostic Function (DMI)
- SFF-8431 and SFF-8432 Compliant
- Maximum link length of 80 km
- Single +3.3 V Power Supply
- Up to 10.5 Gbps bidirectional data links
- RoHS Compliant
- Compliant with 10GBase-ZX
- Compliant with 1000Base-ZR
General Information
Name: Lantronix TN-10GSFP-LR8M-C51 SFP Module Transceiver, SFP+ 1000BASE-ZX/10GBASE-ZR, 1G/10
Category: Lantronix, Data Comm & Networking, Network Adapters, SFP Modules
UPC Code: 648177041640
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-GFPLR834 Brand Name Lantronix Country of Origin TW Manufacturer Lantronix, Inc Manufacturer Part Number TN10GSFPLR8MC51 Packaged Quantity 1 Product Model TN-10GSFP-LR8M Product Name TN-10GSFP-LR8M-Cxx SFP+ Module Product Series TN-10GSFP-LR8M-Cxx Product Type SFP+
Fiber Optic Mode Single-mode Maximum Distance 262467.19' Media Type Supported Optical Fiber
TAA Compliant Yes
Number of Ports 1
Network Technology 1000Base-ZX, 10GBase-CWDM, 10GBase-ZR
Ethernet Technology 10 Gbps
Depth 2.20" Form Factor Plug-in Module Height 0.30" Width 0.50"
Input Voltage 3.3V Plug/Connector Type LC
Limited Warranty Lifetime
Compatibility MSA Compliant Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes
