Lantronix ION002-AD-NA 2-Slot Chassis for ION Platform with AC or DC Power Options
ION002-AD-NA|P6-ION2ADNA
Lantronix ION002-AD-NA 2-Slot Chassis for ION Platform with AC or DC Power Options
ION002-AD-NA|P6-ION2ADNA
Lantronix
Lantronix ION002-AD-NA 2-Slot Chassis for ION Platform with AC or DC Power Options
ION002-AD-NAÂ |Â P6-ION2ADNA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

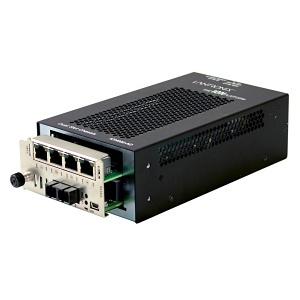

The ION002-AD is a 2-slot ION chassis that is design for network edge deployments, providing a mounting method for 1 double-wide slide-in card or up to 2 single-wide ION slide-in cards. This chassis included 2 power input options to choose from, either AC though the barrel connector or DC through the 2-pin terminal block. The ION002-AD allows 1 or 2 ION slide-in cards to be deployed as stand-alone units.
Main Features
- Desktop installation
- Supports WMBP wall mount brackets
- Unmanaged Chassis
- Supports any ION slide-in card that consume 6 Watts or less of power (C4120-1048 is not supported, C4221-4848 is not supported)
- Fan-less design
- External AC power
- DC power input is an option on the 2 slot chassis
- Support IP addressable managed ION slide-in cards
General Information
Name: Lantronix ION002-AD-NA 2-Slot Chassis for ION Platform with AC or DC Power Options
Category: Lantronix, Data Comm & Networking, Media Converters & Transceivers, Media Converters
UPC Code: 648177039487
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P6-ION2ADNA Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number ION002ADNA Product Line ION Product Name 2-Slot Chassis for ION Modules Product Type Media Converter Chassis Weight (Approximate) (g) 1360.777 Â
-
Management Port No Total Number of Expansion Slots 2 Â
-
Depth 7.1" Depth (mm) 180.34 Form Factor Desktop, DIN Rail, Rack Mount, Wall Mount Height 2.2" Height (mm) 55.88 Weight (Approximate) 3 lb Width 4" Width (mm) 101.6 Â
-
Input Voltage 120V AC, 12V DC, 21V DC, 230V AC, 60V DC Number of Power Supplies Supported 2 Â
-
Limited Warranty Lifetime Â
-
Additional Information Status LEDs None, Power indicator is on the slide-in card
Compatibility ION Modules
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents - 2-Slot Chassis for ION Modules
- AC/DC Power Supply North America
TAA Compliant Yes Â
