Overview
Specifications
Documents
Product Overview

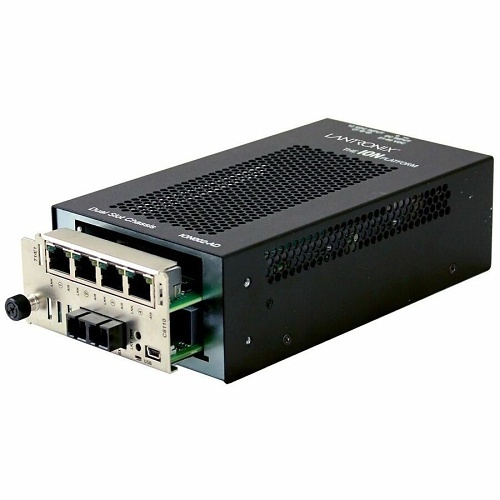

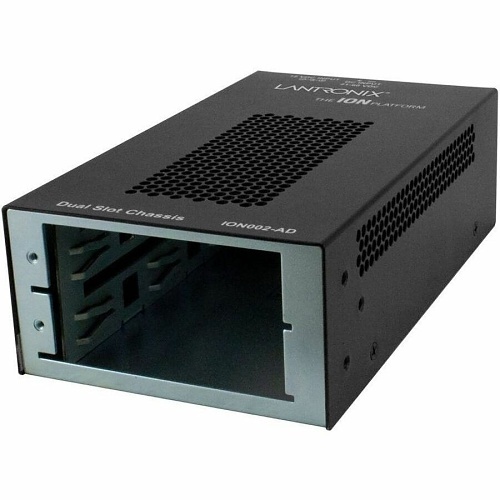

The ION002-AD is a 2-slot ION chassis that is design for network edge deployments, providing a mounting method for 1 double-wide slide-in card or up to 2 single-wide ION slide-in cards. This chassis included 2 power input options to choose from, either AC though the barrel connector or DC through the 2-pin terminal block. The ION002-AD allows 1 or 2 ION slide-in cards to be deployed as stand-alone units.
Main Features
- Desktop installation
- Supports WMBP wall mount brackets
- Unmanaged Chassis
- Supports any ION slide-in card that consume 6 Watts or less of power (C4120-1048 is not supported, C4221-4848 is not supported)
- Fan-less design
- External AC power
- DC power input is an option on the 2 slot chassis
- Support IP addressable managed ION slide-in cards
General Information
Name: Lantronix ION002-AD-OZ 2-Slot Chassis, Dual Input Power-OZ P
Category: Lantronix, Video Surveillance, Data Comm & Networking, Networking Devices, Media Converters & Transceivers, Media Converters, Media Converters
UPC Code: 648177046416
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P6-ION2ADOZ Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number ION002ADOZ Product Line ION Product Model ION002-AD-OZ Product Name 2-Slot Chassis for ION Modules Product Series ION002-AD Product Type Media Converter Chassis Weight 3 lb
-
TAA Compliant Yes
-
Depth 7.1" Height 2.2" Width 4"
-
Input Voltage 120V AC, 12V DC, 21V DC, 230V AC, 60V DC
-
Limited Warranty Lifetime
-
Compatibility ION Modules Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents 2-Slot Chassis for ION ModulesAC/DC Power Supply Australia
