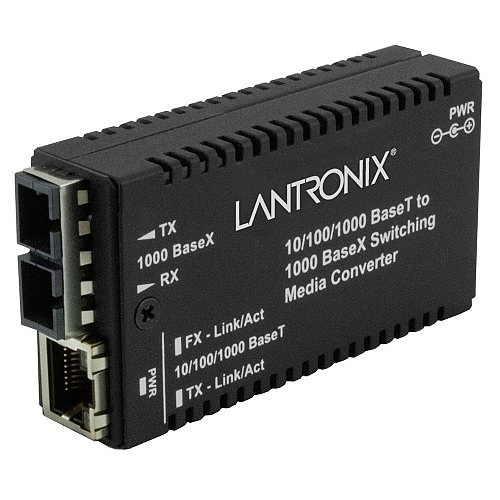

Lantronix M/GE-PSW-LX-01-EU Mini 10/100/1000BT -1000BX SW Switch, 3.3V
M/GE-PSW-LX-01
|P6-MGEPWLXEU
Shop all Lantronix
Lantronix M/GE-PSW-LX-01-EU Mini 10/100/1000BT -1000BX SW Switch, 3.3V
M/GE-PSW-LX-01 | P6-MGEPWLXEU
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The M/GE-PSW Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost-effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. with its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
Main Features
- Unit and Port LEDs allow for quick status information
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Auto-MDI/MDIX
- Active Link Pass Through
- Automatic Link Restoration
- Space-saving design
- Connect Legacy Networking Equipment; Connect an existing 10/100 Mbps device to 1000 Mbps devices
- Jumbo Frame (up to 10,240 Bytes)|USB Power Option, requires the use of a USB to DC barrel connector cable (USBC-AM-DC)
General Information
Name: Lantronix M/GE-PSW-LX-01-EU Mini 10/100/1000BT -1000BX SW Switch, 3.3V
Category: Lantronix, Data Comm & Networking, Network Adapters, Media Converters
UPC Code: 648177038039
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-MGEPWLXEU Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number M/GE-PSW-LX-01-EU Maximum Distance 6.2 Mile Packaged Quantity 2 Product Model M/GE-PSW-LX-01 Product Name Mini Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX/LX Product Series M/GE-PSW Product Type Transceiver/Media Converter
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber Power Consumption 3.15W
TAA Compliant Yes
Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Fiber Optic Wavelength 1310 nm Network Technology 10/100/1000Base-T, 1000Base-LX
Ethernet Technology 10 Gigabit Ethernet
Depth 3.3" Height 0.9" Weight 2lb Width 1.8"
Power Source AC Adapter
Limited Warranty Lifetime
Environmentally Friendly Yes Package Contents M/GE-PSW-LX-01 Transceiver/Media Converter, Power Supply - Europe
