M/GE-PSW-PSE-01Â |Â P6-MGEWEJP
Please sign in to view pricing and availability and to add to cart.
Product Overview

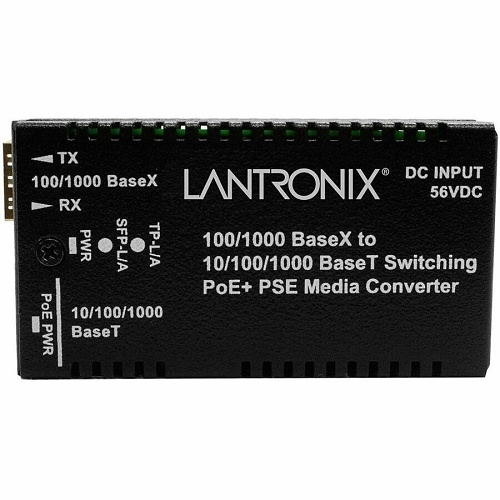

Mini Fast / Gigabit Ethernet PoE+ Media Converter
10/100/1000Base-T PoE+ RJ-45 Port + 100/1000Base-X SFP Slot
This Gigabit Ethernet Stand-alone Mini Media Converter provides cost-effective media conversion between 10/100/1000Base-T ports and 100/1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, but it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
In addition to providing copper to fiber conversion, this converter is also classified as Power Sourcing Equipment (PSE), meaning it combines data received over the fiber optic link with 56VDC input power to provide power and data to a Powered Device (PD) over the twisted Pair cable, while complying with the IEEE 802.3af and IEEE 802.3at PoE+ standards. This allows the user to take advantage of the benefits of fiber cabling, along with the benefits of Power-over-Ethernet (PoE) technology.
Supporting PoE allows this converter to send data and power to devices like VoIP Phones, Security Cameras, and Wireless Access Points, especially if they need to be located in remote areas of your network that can only be reached with fiber optic cabling.
Main Features
- Wall mount, DIN Rail, or table top installation
- External AC/DC power supply included with country specific power cord
- 2-port 10/100/1000 copper to fiber media conversion with IEEE 802.3at PoE+ on the copper port
- Supports full 30 Watts of power to the twisted pair port
- SFP slots can support any 100Base-FX or 1000Base-X fiber SFP module
- Supports Auto-Negotiation
- Supports Auto-MDI/MDIX
- Active Link Pass Through (ALPT): Automatically detect the loss of Receive (Rx) signals on either fiber or copper port and propagate the failure to the end devices
- Auto Power Reset: Re-set the power to the end PD device during a Link Pass Through (LPT) event, ensuring it is ready to go when the fault is corrected
- Jumbo frame support
General Information
Specifications
-
ADI Part Number P6-MGEWEJP Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number MGEPSWPSE01JP Product Model M/GE-PSW-PSE-01 Product Name M/GE-PSW-PSE-01 Transceiver/Media Converter Product Type Transceiver/Media Converter Weight (Approximate) (g) 907.185 Â
-
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 34W Â
-
Expansion Slot Type SFP Number of SFP Slots 1 Number of Total Expansion Slots 1 Â
-
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of PoE+ (RJ-45) Ports 1 PoE Port Type PSE Total Number of Ports 1 Â
-
Maximum Distance Supported 328.08' Maximum Distance Supported (mm) 100000 Network Technology 10/100/1000Base-T, 100/1000Base-X Â
-
Ethernet Technology 10 Gigabit Ethernet Â
-
Depth 3.3" Depth (mm) 83.82 Height 0.9" Height (mm) 21.59 Weight (Approximate) 2 lb Width 1.8" Width (mm) 45.72 Â
-
Input Voltage 56V DC Power Consumption (W) 34.000 Power Source AC/DC Â
-
Limited Warranty Lifetime Â
-
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents - M/GE-PSW-PSE-01 Transceiver/Media Converter
- Power Supply - Japan
TAA Compliant Yes Â
