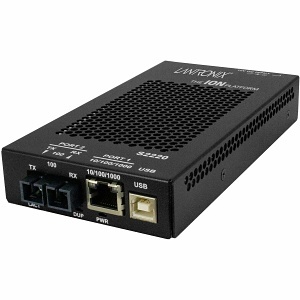

Lantronix S2220-1014-JP 10/100/1000BASE-T to 100BASE-LX SC Single-Mode Wallplate
S2220-1014
|P6-S222114JP
Lantronix S2220-1014-JP 10/100/1000BASE-T to 100BASE-LX SC Single-Mode Wallplate
S2220-1014 | P6-S222114JP
Please sign in to view pricing, availability, and to add to cart.
Product Overview
Stand-alone Fast Ethernet Remotely Managed NID
10/100/1000Base-T to 100Base-FX with OAM/IP-Based Management
The ION S2220 is a stand-alone managed Network Interface Device (NID) that provides an interface between 10/100/1000Base-T ports and 100Base-FX ports, allowing users to manage their links while integrating fiber optic cabling into 10/100/1000 copper environments. As a remotely managed device, the S2220 can be managed individually via an IP address or it can be managed in-band, over the fiber when linked to a C2220 card installed in a managed ION chassis. With advanced features like IEEE 802.3ah Link OAM, VLAN, QoS, SSH/SSL, jumbo frame support, and bandwidth allocation, the S2220 offers a variety of methods for the secure delivery of Ethernet services in business and mobile backhaul applications.
Specifications
ADI Part Number P6-S222114JP Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number S22201014JP Maximum Distance 6.21 Mile Packaged Quantity 2 Product Line ION Product Model S2220-1014 Product Name S2220-1014 Transceiver/Media Converter Product Series S2220 Product Type Transceiver/Media Converter
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber, Twisted Pair
TAA Compliant Yes
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Fiber Optic Wavelength 1310 nm Network Technology 10/100/1000Base-T, 100Base-LX
Ethernet Technology Fast Ethernet, Gigabit Ethernet
Depth 6.5" Height 1" Weight 2lb Width 3.3"
Input Voltage 120V AC, 230V AC Power Source Power Supply
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents S2220-1014 Transceiver/Media ConverterPower Supply - Japan
