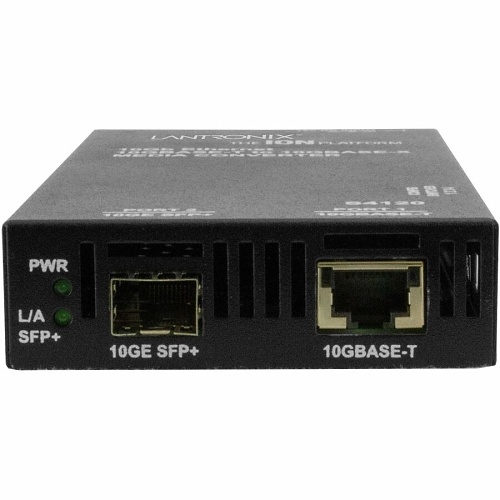

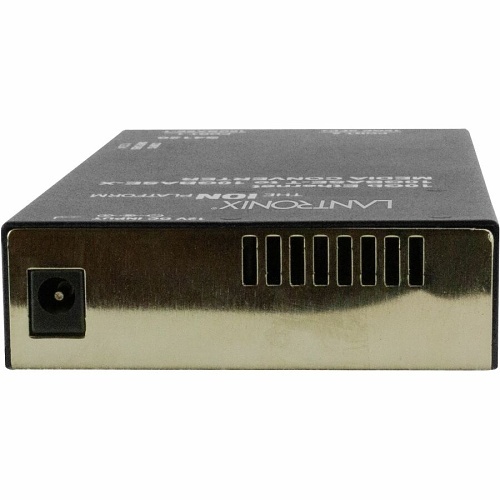

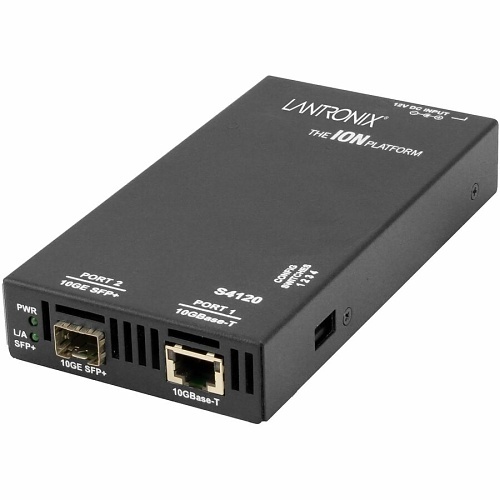

Lantronix S4120-1048-OZ 10GBase-T to 10GE Fiber Connector Converter, OZ
S4120-1048
|P6-S412148OZ
Lantronix S4120-1048-OZ 10GBase-T to 10GE Fiber Connector Converter, OZ
S4120-1048 | P6-S412148OZ
Please sign in to view pricing, availability, and to add to cart.
Product Overview
Stand-alone 10 Gigabit Ethernet Media Converter
10GBase-T Copper to Fiber
The S4120 is a stand-alone media converter that provides an interface between 10GBase-T ports and 10GBase-X slot via an open SFP+ port, allowing users to convert their 10Gig Ethernet ports to the preferred type of cabling used in their networks. The open SFP+ slot supports a wide variety of Transition Networks 10GE SFP+ fiber modules. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making the S4120 ideal for applications where low latency is essential. The ION S4120 can be managed, in-band, over the fiber, when it is linked back to a C4120 card installed in a managed ION chassis.
Main Features
- Transparent Link Pass Through
- Auto-Negotiation
- Auto-MDI/MDIX
- Automatic Link Restoration
- Loopback on Fiber and Copper
- DMI
- Support Remote In-band Management and Remote Firmware Upgrade when linked to a C4120 card installed in a managed ION chassis
- Fiber Port supported standards: 10GBase-SR | 10GBase-LRM | 10GBase-LR | 10GBase-ER | 10GBase-ZR
- The open SFP+ port also supports: Direct attached 10G copper cable assemblies: Both Class-I and Class-II fiber | SFP+ modules | SFP modules supporting WDM technology
- Support 100m on Cat6a or higher UTP Per Energy Efficient Ethernet standards, IEEE 802.3az, UTP cable length is detected and power is adjusted according, to reduce power consumption on shorter UTP cable installs
General Information
Specifications
ADI Part Number P6-S412148OZ Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number S41201048OZ Maximum Distance 328.08' Packaged Quantity 2 Product Line ION Product Model S4120-1048 Product Name S4120-1048 Transceiver/Media Converter Product Series S4120 Product Type Transceiver/Media Converter
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 10.50W
TAA Compliant Yes
Expansion Slot Type SFP+ Number of SFP+ Slots 1 Number of Total Expansion Slots 1
Network (RJ-45) Yes Number of Network (RJ-45) Ports 1 Number of Ports 1
Network Technology 10GBase-T, 10GBase-X
Ethernet Technology 10 Gigabit Ethernet
Depth 6.5" Height 1" Weight 2lb Width 3.3"
Input Voltage 12V DC Power Source AC, DC
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents S4120-1048 Transceiver/Media ConverterPower Supply - Australia
