Image of P6-S61114LAC
Shop all Lantronix

Lantronix S6110-1040-LA 4X T1/E1 ION without Ethernet, 1X SFP

S6110-1040|P6-S61114LAC
Shop all Lantronix

Lantronix S6110-1040-LA 4X T1/E1 ION without Ethernet, 1X SFP

S6110-1040|P6-S61114LAC
Key Features
What's Included
  • (4) RJ-48 copper interfaces
  • (1) fiber interface (SFP)
  • Loopback via test set
Key Features
What's Included
  • (4) RJ-48 copper interfaces
  • (1) fiber interface (SFP)
  • Loopback via test set

Sign In for Dealer Pricing

Become an ADI Customer
Save Up to 50% on Exclusive Brands
Key Features
What's Included
  • (4) RJ-48 copper interfaces
  • (1) fiber interface (SFP)
  • Loopback via test set
Lantronix

Lantronix S6110-1040-LA 4X T1/E1 ION without Ethernet, 1X SFP

S6110-1040 | P6-S61114LAC

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Stand-alone DS1 - T1/E1/J1 Network Interface Device

4 x DS1 - T1/E1/J1 over Fiber

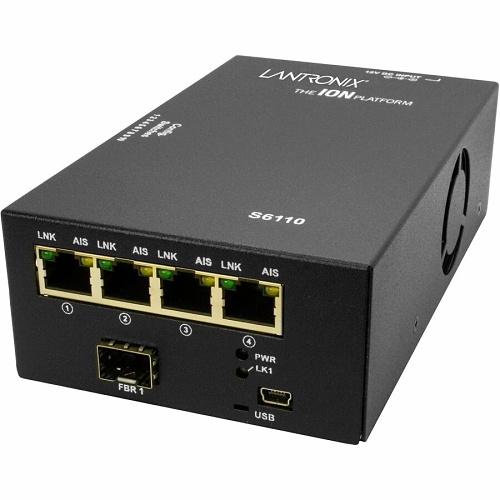

The ION S6110 is a managed stand-alone DS1 - T1/E1/J1 media converter mux that provides a solution for those users that need to extend multiple DS1 - T1/E1/J1 connections over fiber. The S6110 includes (4) RJ-48 ports and (1) fiber port. The device offers support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.

The S6110 converter must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6110 is linked to a C6110 card installed in a managed ION chassis.

Main Features

  • (4) RJ-48 copper interfaces
  • (1) fiber interface (SFP)
  • Loopback via test set
  • Local and remote loopbacks
  • LEDs for device status and troubleshooting
  • Settings for line code, line build out, loopbacks and Alarm Indication Signal (AIS)
  • Access to complete status and configuration on local and remote device
  • Remote firmware upgrade
  • Remote management
  • Extended operating temperature

General Information

Name: Lantronix S6110-1040-LA 4X T1/E1 ION without Ethernet, 1X SFP
Category: Lantronix, Video Surveillance, Data Comm & Networking, Networking Devices, Media Converters & Transceivers, Media Converters, Media Converters
UPC Code: 783384247291
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
Installation Instructions
Manufacturer Brochure
