Product Overview
Stand-alone DS1 - T1/E1 Remotely Managed NID
DS1 - T1/E1 over Fiber

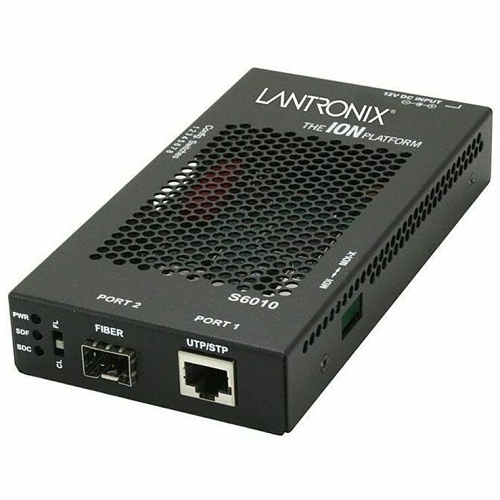

The ION S6010 is a stand-alone managed media converter that offers a solution for extending DS1 - T1/E1 or PRI connections over fiber optic cabling. It provides fiber extension though a twisted pair RJ-48 port and a fiber port. These DS1 - T1/E1 converters must be used in pairs, one on each end of the fiber link. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6010 is linked to a C6010 card installed in a managed ION Chassis. These DS1 - T1/E1 converters are available with fixed fiber connectors or an open SFP slot, with support for various fiber types, distances, and wavelengths to provide maximum flexibility for any network topology. CWDM SFPs can also be used to further increase the bandwidth capacity of the fiber infrastructure.
Main Features
- Remote in-band management
- Local or Remote Loopbacks - Copper or Fiber
- Switch selectable for T1 or E1
- Remote firmware upgrade
- LEDs for immediate visual status
- Supports dual or single fiber
- Supports multimode and single mode fiber at a variety of distances
- Supports CWDM SFPs
- SNMP management when used with ION chassis and management module
- Remote stand-alone can be managed by local peer
General Information
Specifications
ADI Part Number P6-S6114OZ Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number S60101040OZ Maximum Distance 4921.26' Packaged Quantity 2 Product Model S6010-1040 Product Name S6010-1040 Transceiver/Media Converter Product Series S6010 Product Type Transceiver/Media Converter
Media Type Supported Optical Fiber, Twisted Pair Power Consumption 2.60W
TAA Compliant Yes
Expansion Slot Type SFP Number of SFP Slots 1 Number of Total Expansion Slots 1
Number of Ports 1
Network Technology T1/E1
Depth 6.5" Form Factor DIN Rail Mount, Rack Mount, Shelf Mount, Standalone, Wall Mount Height 1" Weight 2lb Width 3.3"
Input Voltage 120V AC, 230V AC Power Source AC Adapter
Mount Type DIN Rail Mount, Rack Mount, Shelf Mount, Standalone, Wall Mount
Limited Warranty Lifetime
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents S6010-1040 Transceiver/Media ConverterPower Supply - Australia
