SBFTF1010-130Â |Â P6-SBFTF3JP
Please sign in to view pricing and availability and to add to cart.
Product Overview
Stand-alone Fault-Tolerant Redundant Link Protector
10/100Base-TX

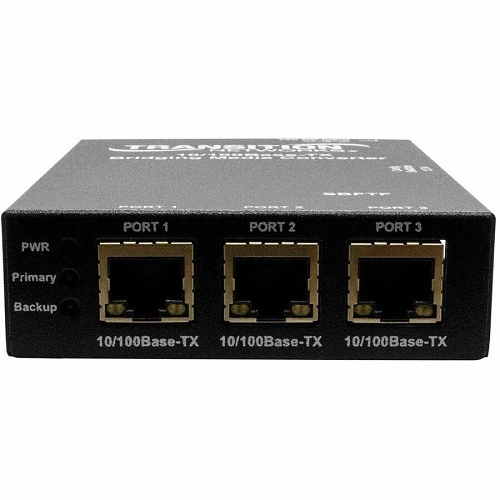

The SBFTF1010-130 Redundant Link Protector is a 10/100 Ethernet fault-tolerant transceiver that significantly reduces network down time by adding a new level of redundancy to 10/100 Ethernet connections. The Redundant Transceiver has three ports: one for the critical (main) device, one for the default (primary) path to the critical device, and another (backup) for the backup path. It is a smart device that will not send any signal on a path that is inactive. If the primary path loses its link, then the transceiver will switch to the backup path in approximately 189 milliseconds.
When the primary path re-establishes its link, the Redundant Link Protector will automatically switch back to the primary path. Optional functionality, controlled via a dip switch, allows the unit to move from the fault-tolerant mode to a 3-port switch mode.
Main Features
- Fault-tolerant redundant connections
- Easy to install and use
- Supports half and full-duplex transmission
- Auto-MDI/MDIX
- Auto-Negotiation
- IEEE 802.3 compliant
- 9 diagnostic LEDs
- Optional 3-port switch mode
General Information
Specifications
-
ADI Part Number P6-SBFTF3JP Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SBFTF1010130JP Product Model SBFTF1010-130 Product Name SBFTF1010-130 Transceiver/Media Converter Product Type Transceiver/Media Converter Weight (Approximate) (g) 907.185 Â
-
Media Type Supported Twisted Pair Power Consumption 2.40W Â
-
Network (RJ-45) Yes Number of Network (RJ-45) Ports 3 Total Number of Ports 3 Â
-
Maximum Distance Supported 328.08' Maximum Distance Supported (mm) 100000 Network Technology 10/100Base-TX Â
-
Ethernet Technology Fast Ethernet Â
-
Depth 4.8" Depth (mm) 121.92 Height 1" Height (mm) 25.4 Weight (Approximate) 2 lb Width 3.3" Width (mm) 82.55 Â
-
Input Voltage 120V AC, 230V AC Power Consumption (W) 2.400 Power Source Power Supply Â
-
Limited Warranty Lifetime Â
-
Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes Package Contents - SBFTF1010-130 Transceiver/Media Converter
- Power Supply - Japan
TAA Compliant Yes Â
