Lantronix SGFEB1014-130-EU 10/100/1000Base-T to 1000Base-X Single Mode SC, EU Power Supply, 10km
SGFEB1014-130 | P6-SGFEB2351
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

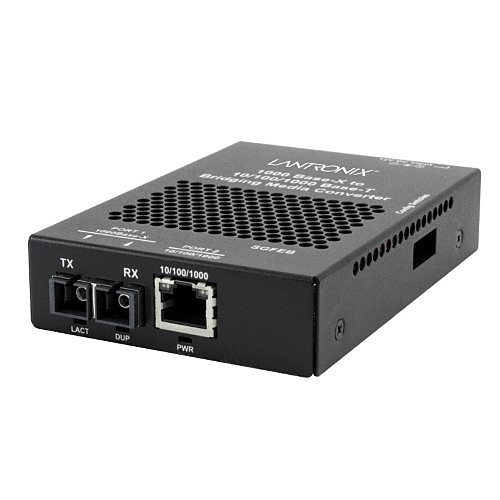

The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
Main Features
- Auto Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far End Fault (FEF)
- Remote Fault Detect
- Provides rate conversion while also increasing transmission distances
- Supports multimode or single mode fiber
- Versions available with fixed SC or LC optics, as well as modular SFP optics
- Long haul transmission distances are supported with a variety of SFP modules
- SFP ports support dual speeds, 100/1000/SGMII
General Information
Name: Lantronix SGFEB1014-130-EU 10/100/1000Base-T to 1000Base-X Single Mode SC, EU Power Supply, 10km
Category: Lantronix, Data Comm & Networking, Network Adapters, Media Converters
UPC Code: 648177039111
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-SGFEB2351 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number SGFEB1014-130-EU Packaged Quantity 2 Product Model SGFEB1014-130 Product Name Stand-alone Gigabit Ethernet Media and Rate Converter10/100/1000Base-T to 1000Base-SX/LX Product Series SGFEB Product Type Transceiver/Media Converter
Fiber Optic Mode Single-mode Maximum Distance 6.21mi Media Type Supported Optical Fiber Power Consumption 2.2000W
TAA Compliant Yes
Number of Network (RJ-45) Ports 1 Number of Ports 2 Number of SC Ports 1
Fiber Optic Wavelength 1310.00nm Network Technology 10/100/1000Base-T, 1000Base-LX, 1000Base-T, 100Base-T, 10Base-T
Ethernet Technology 1 Gbps (Gigabit Ethernet)
Depth 4.80" Height 1.00" Weight 2.00lb Width 3.30"
Power Source AC Power
Threads Per Inch (TPI) 24
Limited Warranty Lifetime
Environmentally Friendly Yes Package Contents Power Supply - Europe, SGFEB1014-130 Transceiver/Media Converter
