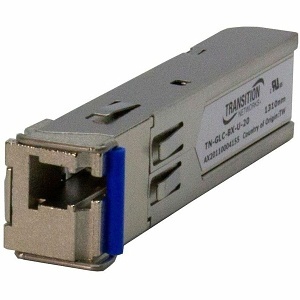

Lantronix TN-GLC-BX-U-20 SFP Module Transceiver, Cisco Compatible, 1000B-BX, 1310/1490NM, 20m
TN-GLC-BX-U-20
|P6-TNGLCBXU2
Shop all Lantronix
Lantronix TN-GLC-BX-U-20 SFP Module Transceiver, Cisco Compatible, 1000B-BX, 1310/1490NM, 20m
TN-GLC-BX-U-20 | P6-TNGLCBXU2
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
1000Base-BX 1310nm TX/1490nm RX single fiber single mode (LC) with DMI [20 km/12.4 mi.] Link Budget- 11.0 dB , UL Listed.
Main Features
- SFP (mini-GBIC) offers better usage with maximum efficiency and convenience
- with 1000Base-BX technology, enjoy up to 1000 Mbps data transfer rate over optical fiber cable
- Up to 10x faster than standard Ethernet connection and provides high-performance
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution
- SFP (mini-GBIC) with optical network application/usage for reliability and maximum efficiency
General Information
Name: Lantronix TN-GLC-BX-U-20 SFP Module Transceiver, Cisco Compatible, 1000B-BX, 1310/1490NM, 20m
Category: Lantronix, Data Comm & Networking, Network Adapters, SFP Modules
UPC Code: 648177040421
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P6-TNGLCBXU2 Brand Name Lantronix Manufacturer Lantronix, Inc Manufacturer Part Number TNGLCBXU20 Maximum Distance 65616.80' Product Model TN-GLC-BX-U-20 Product Name TN-GLC-BX Cisco SFP (mini-GBIC) Module Product Series TN-GLC-BX Product Type SFP (mini-GBIC)
Fiber Optic Mode Single-mode Media Type Supported Optical Fiber Power Consumption 0.66W
TAA Compliant Yes
Number of Ports 1
Network Technology 1000Base-BX
Ethernet Technology 10 Gigabit Ethernet
Depth 2.2" Form Factor Small Height 0.3" Width 0.5"
Input Voltage 3.3V Plug/Connector Type LC
Limited Warranty Lifetime
Country of Origin TW Environmental Certification REACH, RoHS, WEEE Environmentally Friendly Yes
