Product Overview

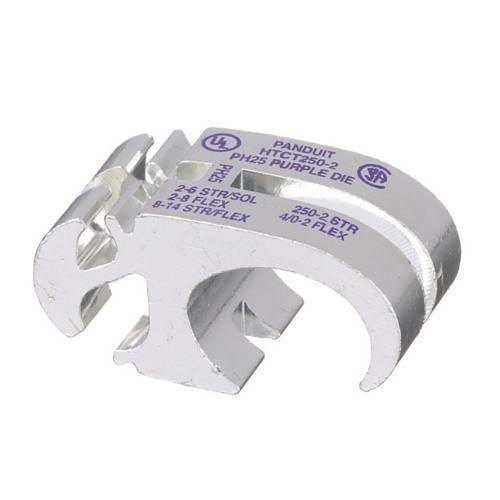

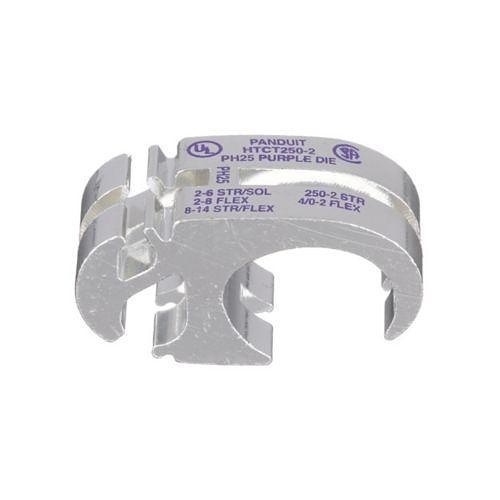

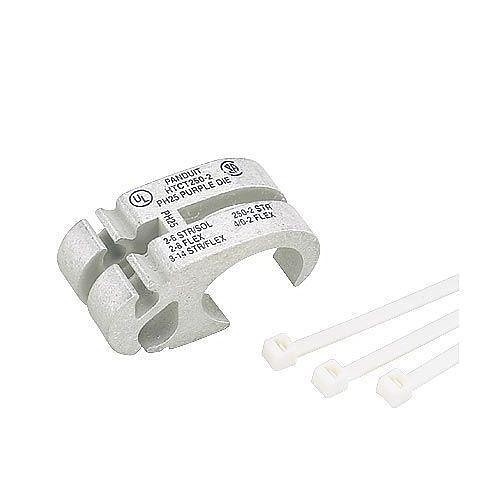

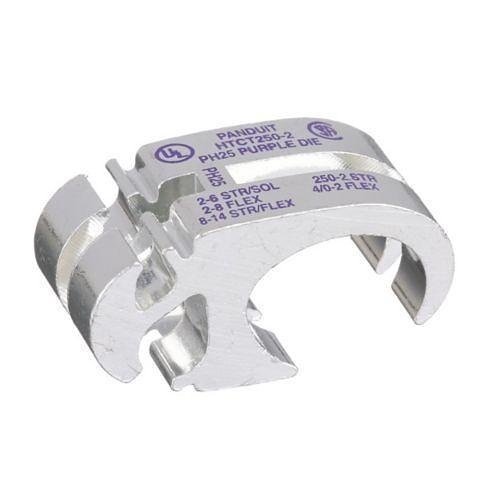

The HTCT250-250-1 Compression Connector Tap used to tap into continuous conductors as a splice or pig tailing. Each HTAP terminates a wide range of conductor sizes and combinations of code and flex conductors Class G, H, I, and Diesel Locomotive to suit a variety of applications. The slotted design allows quick and easy assembly of conductor to HTAP using three Panduit 94V-0 cable ties. Meets cULus and CSA Certified for applications up to 600 V.
Main Features
- Includes HTCT250-250-1 Copper Compression Heat Tap for tapping into continuous conductors as splice
- Terminates wide range of conductor sizes including code and flex conductors Class G, H, I, and
- Slotted design enables quick and easy assembly using three Panduit 94V-0 cable ties
- Certified cULus and CSA for applications up to 600 V
General Information
Name: Panduit HTCT250-250-1 Copper Compression Heat Tap
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 074983440849
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-CT2502501 Brand Name Panduit Manufacturer Part Number HTCT250-250-1
Height 1.92" Width 0.89"
Length 0.9"
