Image of P9-D1014ANSL

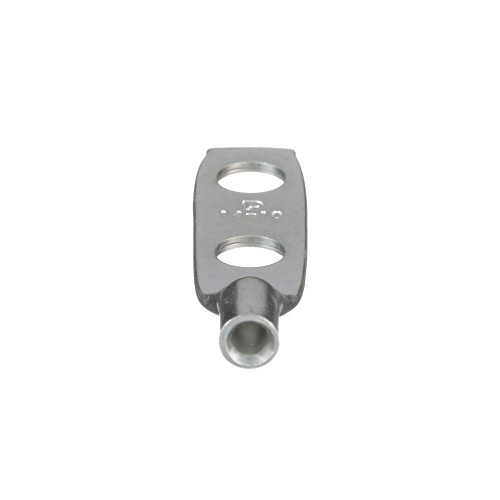

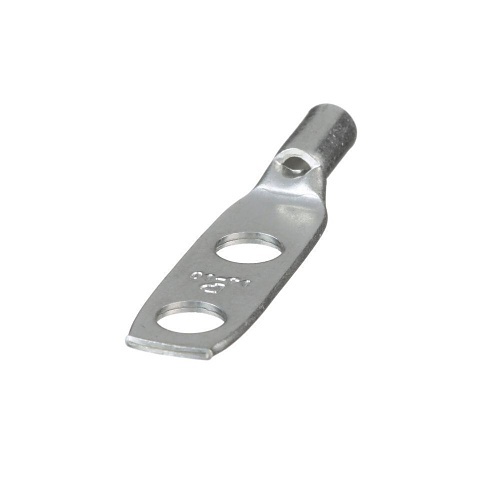

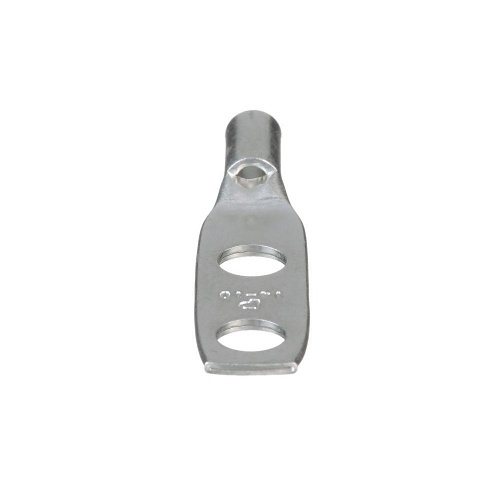

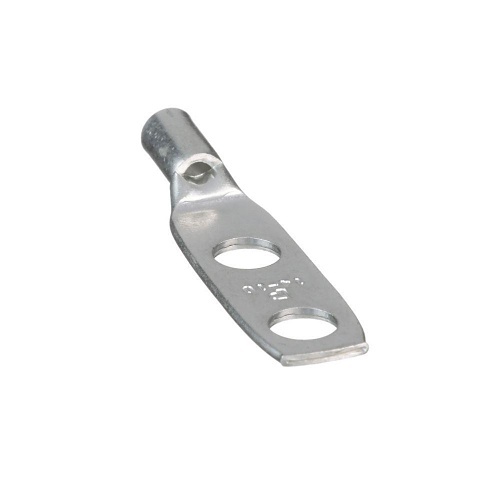

Panduit LCD10-14ANS-L Copper Compression Lug, 2 Hole, #10 AWG, Hole

LCD10-14ANS-L|P9-D1014ANSL

Panduit LCD10-14ANS-L Copper Compression Lug, 2 Hole, #10 AWG, Hole

LCD10-14ANS-L|P9-D1014ANSL
Key Features
  • Nickel/Silver plated for high thermal conductivity
  • 2-hole standard barrel design
  • Color-coded barrels for easy crimp die selection
Key Features
  • Nickel/Silver plated for high thermal conductivity
  • 2-hole standard barrel design
  • Color-coded barrels for easy crimp die selection

Sign In for Dealer Pricing

Become an ADI Customer
Save Up to 50%  on Exclusive Brands
Key Features
  • Nickel/Silver plated for high thermal conductivity
  • 2-hole standard barrel design
  • Color-coded barrels for easy crimp die selection
Panduit

Panduit LCD10-14ANS-L Copper Compression Lug, 2 Hole, #10 AWG, Hole

LCD10-14ANS-L | P9-D1014ANSL

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The LCD10-14ANS-L Nickel / Silver Plated Copper Compression Lug, 2-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, the Nickel / Silver plated material has high thermal conductivity which facilitates the efficient transmission of electricity and heat. cULus Listed to 35kV and temperature rated to 90°C.

Main Features

  • Nickel/Silver plated for high thermal conductivity
  • 2-hole standard barrel design
  • Color-coded barrels for easy crimp die selection
  • Inspection window for full conductor insertion
  • cULus Listed to 35kV
  • Temperature rated to 90°C

General Information

Name: Panduit LCD10-14ANS-L Copper Compression Lug, 2 Hole, #10 AWG, Hole
Category: Panduit, Batteries & Power Supplies, Power Management, Grounding & Bonding
UPC Code: 613056859494
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources
