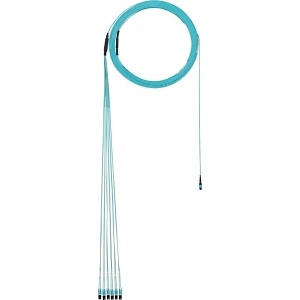

Panduit F9TYP5EL2SAM030 12-Fiber Trunk Cable Assembly, OS2, OFNP, MPO F to LC Duplex, Standard Polarity
F9TYP5EL2SAM030
|P9-EL2SAF177
Shop All Panduit
Panduit F9TYP5EL2SAM030 12-Fiber Trunk Cable Assembly, OS2, OFNP, MPO F to LC Duplex, Standard Polarity
F9TYP5EL2SAM030 | P9-EL2SAF177
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Small Diameter Trunk Cable Assemblies allow for rapid deployment of high-density permanent links in a single assembly for data center applications requiring quick infrastructure deployment, such as main, horizontal and zone distribution areas. These trunk cable assemblies optimize cable routing requirements to ensure efficient use of pathway space and significantly reduce installation time and cost. QuickNet Small Diameter Trunk Cable Assemblies are built with modular MPO connectivity and provide compatibility, flexibility and system performance in all permanent link applications. All small diameter trunk cable assemblies are factory terminated and tested to deliver verified optical performance and reliability for improved network integrity. 10Gig versions provide 10 Gb/s network performance up to 300 meters for OM3 and up to 550 meters for OM4 per IEEE 802.3ae 10 GbE standard while maintaining compatibility with legacy systems.
Specifications
ADI Part Number P9-EL2SAF177 Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number F9TYP5EL2SAM030 Packaged Quantity 1 Product Line QuickNet Product Name Fiber Optic Network Cable Product Series QuickNet Product Type Network Cable
Application/Usage High Cable Density Applications Cable Rating Plenum Cable Type Fiber Optic Connector on First End MPO Female Connector on Second End LC Duplex Core/Cladding Diameter 9/125 µm Device Supported Network Device Fiber Category OS1, OS2 Fiber Count 12 Fiber Optic Mode Single-mode Jacket Type Plenum
Connector Type LC/UPC, MPO/UPC
Data Transfer Rate 10 Gbit/s
Cable Length 98' Color Yellow
Environmental Certification RoHS Environmentally Friendly Yes
