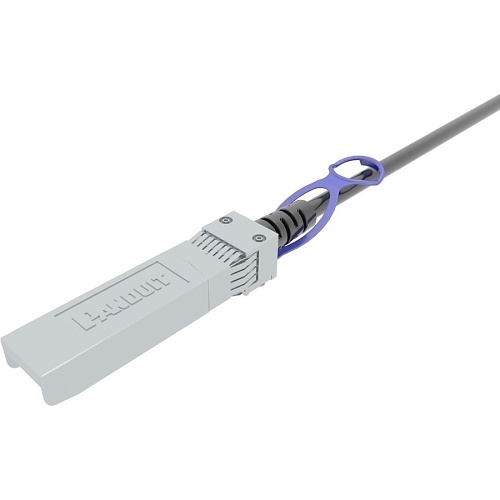

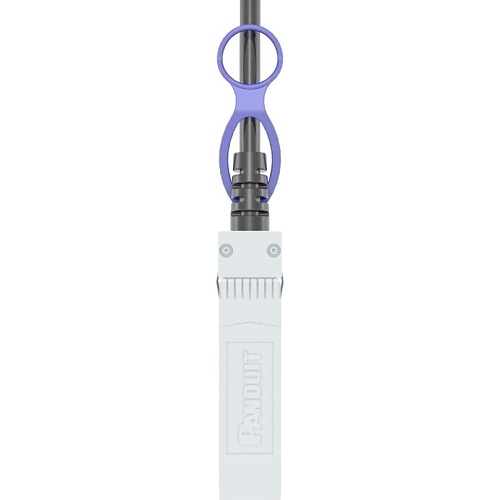

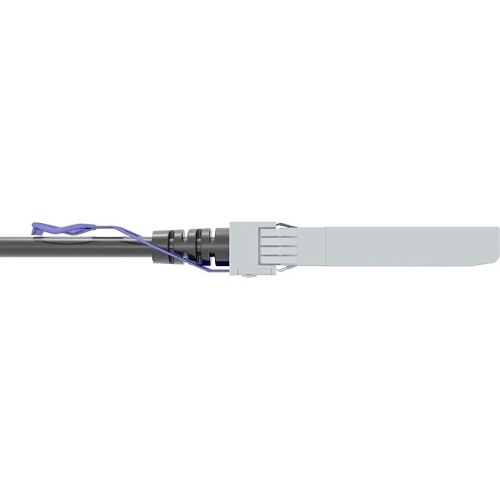

Panduit PSF1PZA1MRD SFP+ 10GIG Direct Attach Passive Copper Cable
PSF1PZA1MRD
|P9-F1PZA1MRD
Panduit PSF1PZA1MRD SFP+ 10GIG Direct Attach Passive Copper Cable
PSF1PZA1MRD | P9-F1PZA1MRD
Please sign in to view pricing, availability, and to add to cart.
Product Overview
Low Power, Low Latency 10 Gb/s Server Interconnect Solution for Top of Rack Switching Applications
As virtualization, consolidation, and convergence initiatives continue to grow, so do the demands placed on the physical infrastructure. To meet the needs for faster processing speeds, low power server inter-connect and I/O consolidation deployments, Panduit offers 10Gig™ SFP+ Direct Attach Passive Copper Cable Assemblies.
This high speed data transport capability is ideal as server virtualization becomes more prevalent. With multiple virtual machines, server I/O consolidation topology requires 10 Gb/s interconnects between top of rack switches and servers.
By incorporating 10Gig™ SFP+ Direct Attach Passive Copper Cable Assemblies into the physical infrastructure, businesses can achieve 10 Gigabit performance port-to-port without additional signal processing or conversion, providing a low power, low latency 10 Gb/s server interconnect option for top of rack switching applications.
End-to-end high speed data transport systems from Panduit deliver enhanced availability, agility, and security.
Main Features
- 100% performance tested : Confidence that each assembly delivers specified performance for ensured network availability
- Compliant to SFF-8431, SFF-8432 and SFF-8472 : Ensuring 10 Gb/s performance when mated to any SFF-8431 SFP+ compliant host port
- Robust construction : High speed 10 GHz twin-axial cable, with two shielded parallel pairs, factory terminated to SFP+ 10 Gb/s hot pluggable modular connectors; rated to a minimum 250 mating cycles
- Low latency performance : Ideal for high performance computer clustering and other latency sensitive applications
- Passive low power assembly : Provides a low cost short reach interconnect option with no additional power draw
- Low profile : Robust easy-to-use connector latching feature allows easy installation in belly-to-belly high density installations
- Small diameter cable design : Enables proper cable management and improved airflow
- Built-in strain relief : Ensures proper bend radius control for reliable deployment
- Variety of lengths : Available 1 to 5 meters for design flexibility and optimum airflow
- Variety of colors : Available in Blue, White, Black, and Red for easy identification of multiple networks and fabrics
General Information
Specifications
ADI Part Number P9-F1PZA1MRD Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number PSF1PZA1MRD Packaged Quantity 1 Product Line 10Gig Product Name 10Gig SFP+ Direct Attach Passive Copper Cable Assemblies Product Type Network Cable
American Wire Gauge 30AWG Cable Type Twinaxial Device Supported Computer, Network Device, Server, Switch Shielding Yes
Data Transfer Rate 25 Gbit/s
Cable Length 3.28' Color Black, Blue, Red, White
Limited Warranty 1-Year
Country of Origin CN Environmentally Friendly Yes Features Bendable, Latching Connector, Passive, Pull Tab Latch, Strain Relief
