Panduit ICFX10WHX Cable Management, Inside Corner Fitting LD10, White, 10-Pack
ICFX10WHX
|P9-ICFX10WHX
Shop All Panduit
Panduit ICFX10WHX Cable Management, Inside Corner Fitting LD10, White, 10-Pack
ICFX10WHX | P9-ICFX10WHX
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

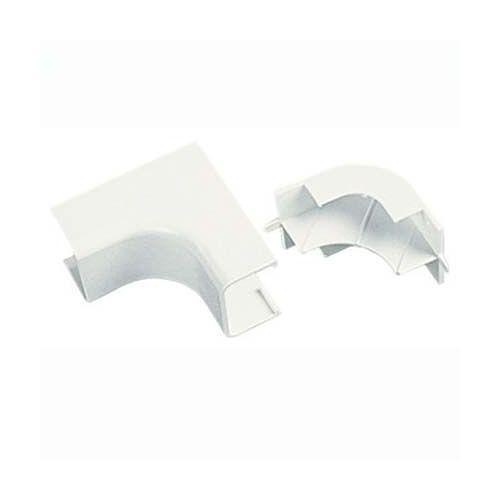

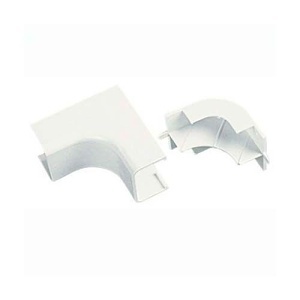

The power rated inside corner fitting is used to efficiently run cables along an inside corner while maintaining a 1 inch bend radius. It is designed to be used with the LDPH10 raceway and features a snap-on installation. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It is made of ABS plastic and is white.
Main Features
- Power rated inside corner fitting
- Maintains 1 inch bend radius
- Compatible with LDPH10 raceway
- Snap-on installation
- Meets TIA/EIA Standards
- UL5A Listed and UL Compliant
- Made of ABS plastic
- White color
General Information
Name: Panduit ICFX10WHX Cable Management, Inside Corner Fitting LD10, White, 10-Pack
Category: Panduit, Data Comm & Networking, Cable Management, Cable Raceways & Fittings
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-ICFX10WHX Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number ICFX10WH-X Package Type Pack Packaged Quantity 10 Product Name Pan-Way Power Rated Fittings Product Type Cable Routing
Color White Height 2.49" Material ABS Width 1.62"
Length 2.49"
Limited Warranty 1-Year
Compatibility Pan-Way LD Surface Raceways:
- LDPH10
- LD2P10
Environmental Certification UL Environmentally Friendly Yes
