Panduit LAMA2-14-QY Aluminum Mechanical Lug with Hole and 1 Barrel
LAMA2-14-QY
|P9-LAMA214QY
Shop All Panduit
Panduit LAMA2-14-QY Aluminum Mechanical Lug with Hole and 1 Barrel
LAMA2-14-QY | P9-LAMA214QY
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

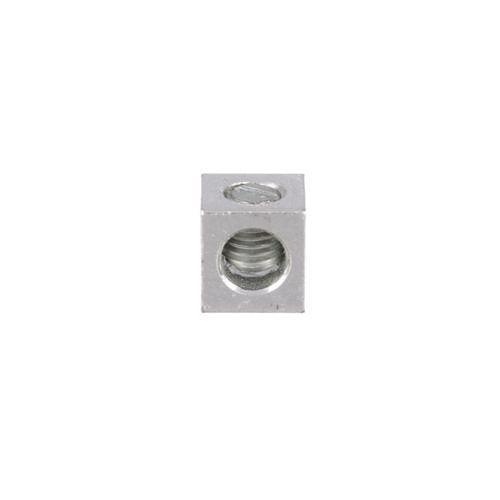

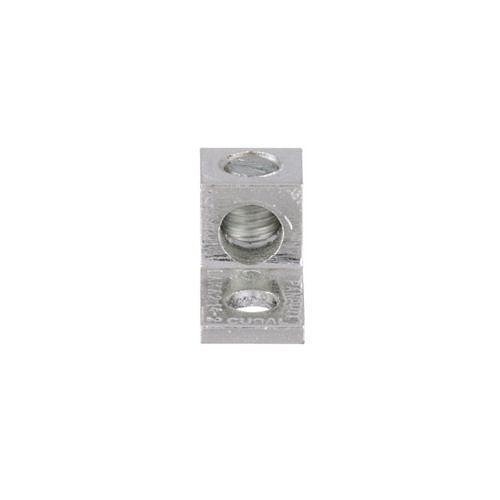

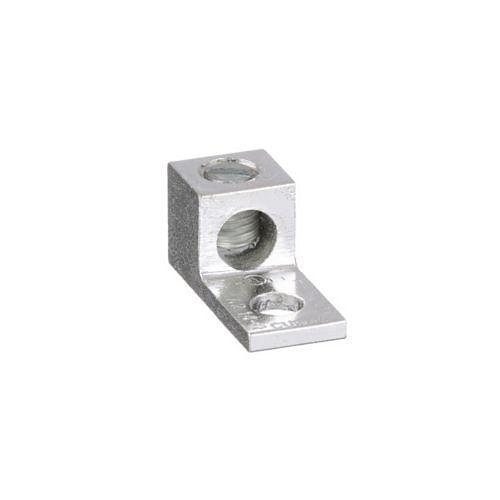

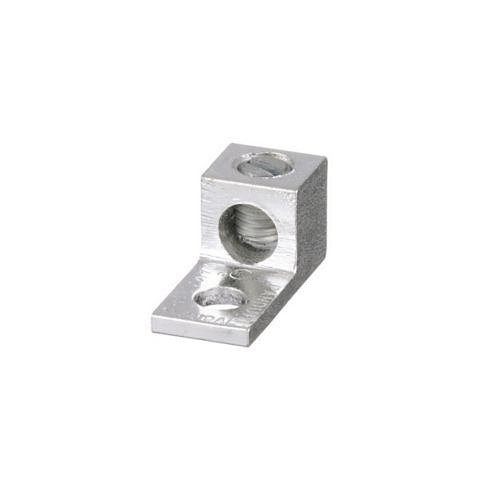

The LAMA2-14-QY Tin-Plated Aluminum Mechanical Connector, one-hole, single barrel, is made from extruded aluminum alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel or aluminum set screw provides a durable electrical contract between conductor and connector. UL Listed and CSA Certified for use up to 600 V and UL temperature rated 90 Degrees Celsius.
Main Features
- Tin-Plated Aluminum for premium performance
- One-hole, single barrel design
- Wide wire range-taking capability
- Minimizes inventory requirements
- Durable electrical contact with set screw
- UL Listed and CSA Certified
- Rated for use up to 600 V
- Temperature rated 90°C
General Information
Name: Panduit LAMA2-14-QY Aluminum Mechanical Lug with Hole and 1 Barrel
Category: Panduit, Batteries & Power Supplies, Power Accessories & Parts
UPC Code: 074983596126
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-LAMA214QY Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number LAMA2-14-QY Package Length 0 Packaged Quantity 25 Product Name Terminal Connector Product Type Terminal Connector
Connector Plating Tin
Connector Type Barrel Plug
Height 0.55" Width 0.5"
Length 1.17"
Limited Warranty 1-Year
Environmentally Friendly Yes Features Halogen Free
