Product Overview
Our wide assortment of heavy-duty locking and standard power cords are a best in class offer; designed for transferring power from the rack power distribution unit (PDU) to active gear in a data center cabinet or rack. They are available in a variety of colors & lengths. The W-Lock & V-Lock compatible locking cords eliminate accidental disconnects caused by vibration and/or contact. In addition, they feature locking on both ends, G5 PDU side & IT Gear side; for a secure connection.
Main Features
- W-Lock & V-Lock: Compatible Eliminates disconnects caused by vibration and/or accidental contact
- Dual-Ended Locking: Cord locks on both ends, G5 PDUs & IT Gear side. G5 PDU side is also V-Lock Compatible
- Universal Female Locking Connector: Compatible with all standard IT gear input plugs
- Selection of lengths: Allows user to optimize cable management to reduce slack and improve thermal performance
- Non-conforming packaging: Prevents cord deformity from bound packaging methods
- Selection of colors: Cords available in Red, Blue, Black, Yellow & Gray
- Selection of configurations: Variety of configurations are available to meet multiple application environments
General Information

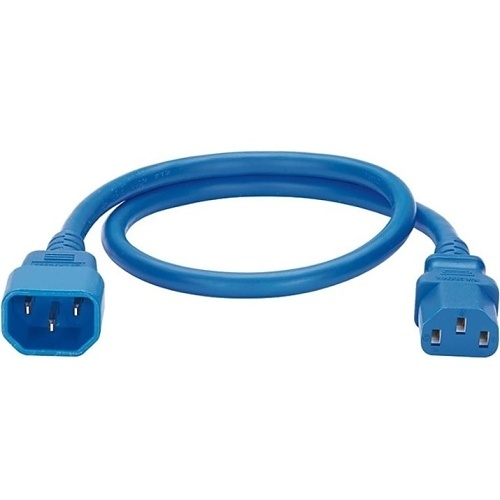

Name: Panduit NPCA09-X Non-Locking Power Cord, IEC C14 to IEC C13
Category: Panduit, Batteries & Power Supplies, Electrical Cords & Connectors, Power Cords
UPC Code: 613056832299
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-NPCA09X Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number NPCA09X Packaged Quantity 10 Product Name Standard Power Cord Product Type Standard Power Cord

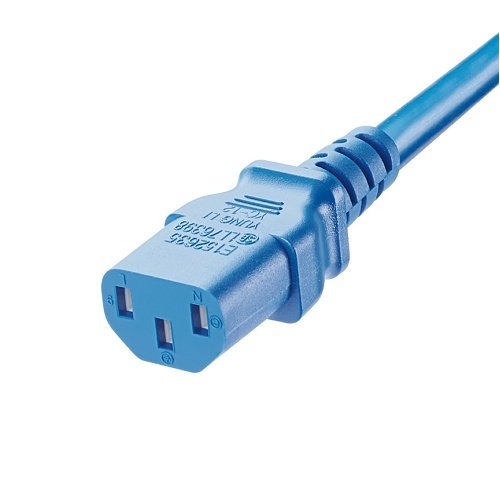

Device Supported Network Device, PDU, Rack Cabinet First End Connector Detail 3-pin IEC 60320 C13 Female First End Connector Type IEC 60320 C13 Second End Connector Detail 3-pin IEC 60320 C14 Male Second End Connector Type IEC 60320 C14
Color Blue
Current Rating 10 A Voltage Rating 250V AC
Length 6'
Compatibility - Panduit SmartZone G5 PDU
- Panduit SmartZone Cabinet
Country of Origin CN Environmentally Friendly Yes
