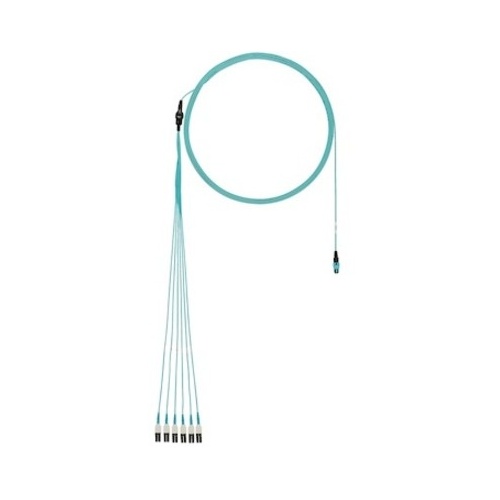

Panduit FX8RP7NUSQNF080 8-Fiber Round Harness, OM3, Plenum, PanMPO F to LC Uniboot
FX8RP7NUSQNF080
|P9-NSNFXA159
Shop all Panduit
Panduit FX8RP7NUSQNF080 8-Fiber Round Harness, OM3, Plenum, PanMPO F to LC Uniboot
FX8RP7NUSQNF080 | P9-NSNFXA159
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
To meet the needs for fiber cable plant migration to higher speeds, Panduit offers 4 to 1 conversion harness assemblies. As part of the Panduit High-Speed Data Transport (HSDT) solution, these passive fiber cables provide a cost-effective solution for interconnecting high-speed switches equipped with MPO modular transceivers to switches equipped with LC transceivers. The PanMPO end is wired as four separate transmit and receive fibers which are connected to four LC connector ends. The four LC connector ends can be directly attached to co-located switch gear or connected to an existing LC-based structured cabling system to allow for distribution to different locations in the data center.
Main Features
- Offers a reliable network connectivity
- Features fiber optic cable type to better acco mmodate your precise power supply requirements with maximum charging productivity
- Uniboot Connector feature for better usability and increased efficiency
- Fully compatible with patch panels
General Information
Name: Panduit FX8RP7NUSQNF080 8-Fiber Round Harness, OM3, Plenum, PanMPO F to LC Uniboot
Category: Panduit, Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Patch Cords
UPC Code: 074983985845
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-NSNFXA159 Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number FX8RP7NUSQNF080 Packaged Quantity 1 Product Line QuickNet Product Name Fiber Optic Network Cable Product Series QuickNet Product Type Network Cable
Application/Usage Interconnection of MPO modular transceiver ports with multiple LC modular ports Cable Rating Plenum Cable Type Fiber Optic Connector on First End PanMPO Female Connector on Second End LC Uniboot Core/Cladding Diameter 50/125 µm Device Supported Network Device, Patch Panel Fiber Category OM3 Fiber Count 8 Fiber Optic Mode Multimode Jacket Type Plenum
Connector Type LC/UPC, MPO/UPC
Data Transfer Rate 10 Gbit/s
Cable Length 78.74' Color Aqua
Limited Warranty 1-Year
Environmental Certification RoHS Environmentally Friendly Yes Features Uniboot Connector
