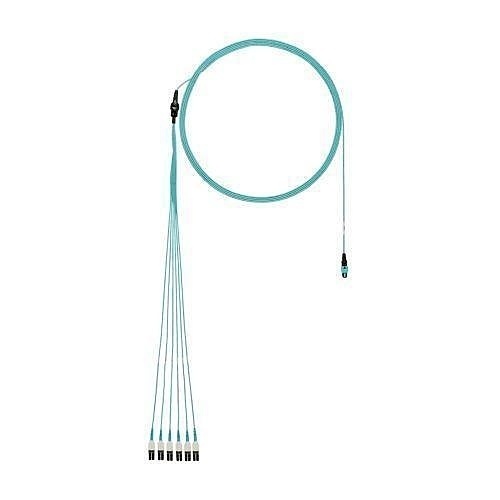

Panduit FX8RP7NUSQNF040 8-Fiber Round Harness, OM3, Plenum, PanMPO F to LC Uniboot
FX8RP7NUSQNF040
|P9-NUSNFXA79
Panduit FX8RP7NUSQNF040 8-Fiber Round Harness, OM3, Plenum, PanMPO F to LC Uniboot
FX8RP7NUSQNF040 | P9-NUSNFXA79
Please sign in to view pricing, availability, and to add to cart.
Product Overview
To meet the needs for fiber cable plant migration to higher speeds, Panduit offers 4 to 1 conversion harness assemblies. As part of the Panduit High Speed Data Transport (HSDT) solution, these passive fiber cables provide a cost-effective solution for interconnecting high speed switches equipped with MPO modular transceivers to switches equipped with LC transceiver.
The PanMPO end is wired as four separate transmit and receive fibers which are connected to four LC connector ends. The four LC connector ends can be directly attached to co-located switch gear or connected to an existing LC-based structured cabling system to allow for distribution to different locations in the data center.
Main Features
- Offers a reliable network connectivity
- Features fiber optic cable type to better acco mmodate your precise power supply requirements with maximum charging productivity
- Uniboot Connector feature for better usability and increased efficiency
- Fully compatible with transceivers
General Information
Specifications
ADI Part Number P9-NUSNFXA79 Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number FX8RP7NUSQNF040 Packaged Quantity 1 Product Line QuickNet Product Name QuickNet Fiber Optic Network Cable Product Type Network Cable
Cable Type Fiber Optic Connector on First End PanMPO Connector on Second End LC Core/Cladding Diameter 50/125 µm Device Supported Network Device, Switch, Transceiver Fiber Category OM3 Fiber Optic Mode Multimode
Data Transfer Rate 10 Gbit/s
Cable Length 40'
Environmentally Friendly Yes Features Passive, Uniboot Connector
