Panduit P12B47M Basic Power Distribution Unit, 30A, 12-Pack, NEMA L6-30P-3
P12B47M
|P9-P12B47M
Shop all Panduit
Panduit P12B47M Basic Power Distribution Unit, 30A, 12-Pack, NEMA L6-30P-3
P12B47M | P9-P12B47M
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

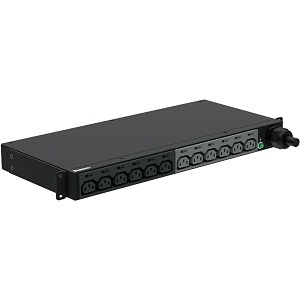

The 30A, 208V horizontal single phase PDU has (12) C13 receptacles, a 10' (3m) power cord with a NEMA L6-30P plug, and measures 1.7"H x 17.5"W x 7.8"D (43.2mm x 444.5mm x 198.1mm). UL Listed. Color: Black
Main Features
- Outlet Density: Meets demands of densely packed IT equipment in rack or cabinet space
- Form Factor: Optimal form factor takes up less space for efficient rack space utilization
- Operating Temperature: 60 °C ambient at full load for operational reliability
- Cable Retention: Our innovative cable tie accepting outlets allow for secure cord retention (C13 & C19 only) using a cable tie for added safety and security. (Panduit part number: PLT2I-C0)
- Circuit Breakers: Protects data center equipment for increased reliability by interrupting potentially hazardous circuit over-current conditions
- Color Coded Circuits: Easily identify phase to outlet banks to aid in fault isolation or load balancing
- Multiple input plug options: A full breadth offering to seamlessly interoperate with existing building power wiring schemes
- Multiple Mounting options: Enables simple out of the box commissioning and flexibility with Panduit cabinets and industry standard mounting features enabling installation into third party cabinets
- Mounting buttons: Allows tool-less mounting of rack PDUs for faster installations on vertical 0U units
- External Chassis Ground: Meets NEC requirements and installation guidelines for IT equipmen
General Information
Name: Panduit P12B47M Basic Power Distribution Unit, 30A, 12-Pack, NEMA L6-30P-3
Category: Panduit, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 613056263444
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-P12B47M Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number P12B47M Packaged Quantity 1 Product Model P12B47M Product Name P12B47M Horizontal Power Distribution Unit Product Type PDU Sector Data Comm & Networking
Output Voltage 230V AC PDU Type Basic Phase Single Phase Receptacle Detail 12 x IEC 60320 C13 Receptacle Type IEC 60320 C13
Color Black Depth 7.8" Height 1.7" Mounting Orientation Horizontal Rack Height 1U Width 17.5"
Input Current 30A Input Voltage 230V AC Plug/Connector Type NEMA L6-30P
Mount Type Rack Mount
Country of Origin US Environmentally Friendly Yes
