Key Features
- PDU allows power to be more efficiently distributed and controlled
- Basic PDU is the space-saving and cost-effective way to deliver power
- NEMA 5-20R receptacle type to ensure maximum productivity with added feasibility
Key Features
- PDU allows power to be more efficiently distributed and controlled
- Basic PDU is the space-saving and cost-effective way to deliver power
- NEMA 5-20R receptacle type to ensure maximum productivity with added feasibility
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- PDU allows power to be more efficiently distributed and controlled
- Basic PDU is the space-saving and cost-effective way to deliver power
- NEMA 5-20R receptacle type to ensure maximum productivity with added feasibility
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
Main Features
- PDU allows power to be more efficiently distributed and controlled
- Basic PDU is the space-saving and cost-effective way to deliver power
- NEMA 5-20R receptacle type to ensure maximum productivity with added feasibility
- Single Phase phase PDU provides dependable power output with maximum efficiency
- NEMA L5-20P plug/connector type for better, dependable connectivity and desired power output
- 120 V AC input voltage for better reliance and maximum dependability
- 120 V AC output voltage for better reliance and maximum usability
General Information

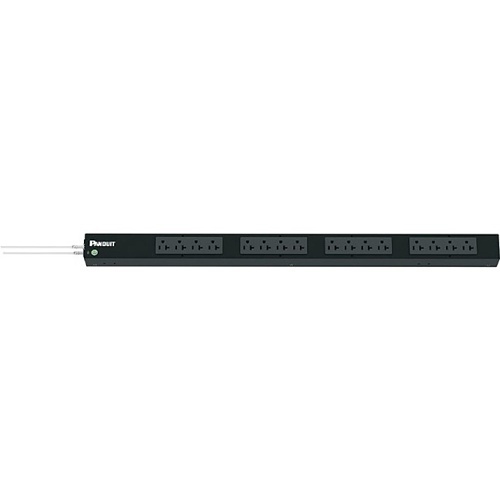

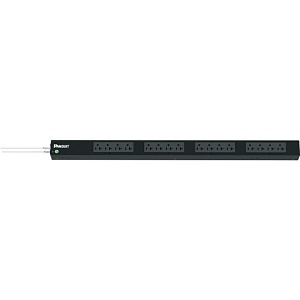

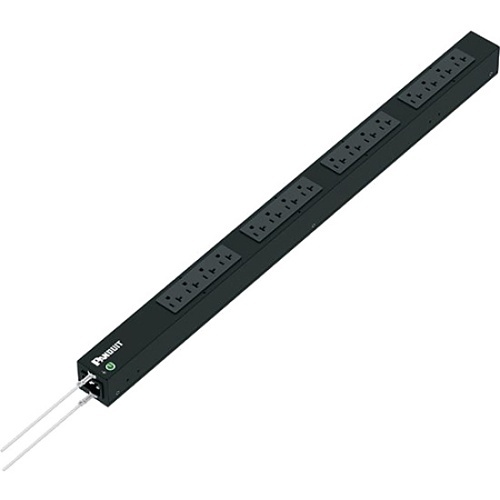

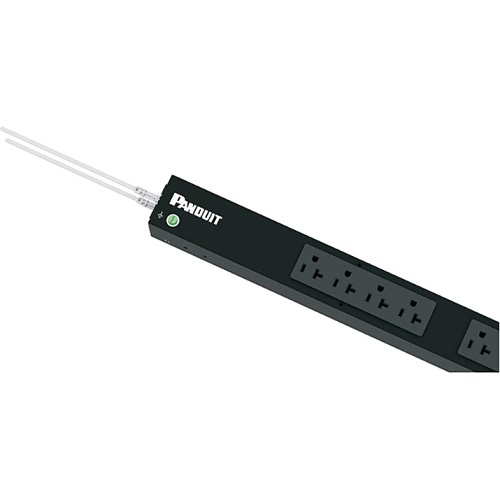

Name: Panduit P16B08M PDU EPO 1U Inch C20 16A 1P Output 12xC13 Mount
Category: Panduit, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number P9-P16B08M Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number P16B08M Packaged Quantity 1 Product Line SmartZone Product Model P16B08M Product Name P16B08M Vertical Basic Power Distribution Unit Product Type PDU
-
Output Voltage 120V AC PDU Type Basic Phase Single Phase Receptacle Detail 16 x NEMA 5-20R Receptacle Type NEMA 5-20R
-
Remote Outlet Switching No
-
Depth 2.1" Height 32.2" Mounting Orientation Vertical Rack Height 0U Width 2"
-
Input Current 20 A Input Voltage 120V AC Plug/Connector Type NEMA L5-20P
-
Mount Type Rack Mount
-
Limited Warranty 3-Year
-
Country of Origin US Environmentally Friendly Yes
