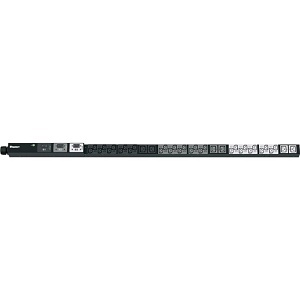

Panduit P36B20M Basic Power Distribution Unit, 50 Amp, 50A HAR, 30-C13, 6-C, 30-C13, 6-C19
P36B20M
|P9-P36B20M
Shop all Panduit
Panduit P36B20M Basic Power Distribution Unit, 50 Amp, 50A HAR, 30-C13, 6-C, 30-C13, 6-C19
P36B20M | P9-P36B20M
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.
Main Features
- PDU allows power to be more efficiently distributed and controlled
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
- IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
- Single Phase phase PDU provides dependable power output with maximum efficiency
- Hardwired plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for optimal performance with maximum usability
- 208 V AC output voltage for optimal performance with maximum feasibility
General Information
Name: Panduit P36B20M Basic Power Distribution Unit, 50 Amp, 50A HAR, 30-C13, 6-C, 30-C13, 6-C19
Category: Panduit, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 613056263802
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-P36B20M Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number P36B20M Packaged Quantity 1 Product Line SmartZone Product Model P36B20M Product Name P36B20M Vertical Basic Power Distribution Unit Product Type PDU Sector Data Comm & Networking
Output Voltage 208V AC PDU Type Basic Phase Single Phase Receptacle Detail 30 x IEC 60320 C13, 6 x IEC 60320 C19 Receptacle Type IEC 60320 C13, IEC 60320 C19
Remote Outlet Switching No
Depth 2.1" Height 58.7" Mounting Orientation Vertical Rack Height 0U Width 2"
Input Current 50A Input Voltage 230V AC Plug/Connector Type Hardwired
Mount Type Rack Mount Protection Type Double Pole
Limited Warranty 3-Year
Environmentally Friendly Yes
