Panduit P48E20M MS Power Distribution Unit, 30A/32A, 24-Pack, 24" C13/C15, 24" C13/15
P48E20M
|P9-P48E20M
Shop all Panduit
Panduit P48E20M MS Power Distribution Unit, 30A/32A, 24-Pack, 24" C13/C15, 24" C13/15
P48E20M | P9-P48E20M
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

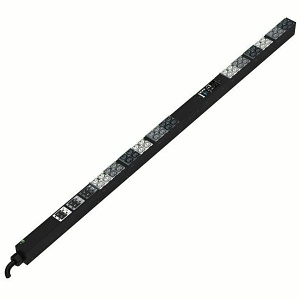

The SmartZone™ G5 Monitored Switched PDU features (24)C13/C15, (24)C13/15/C19/C21 outlets. This PDU is designed with combination outlets which allows the receptacle to be used as an C13/C15/C19 or C21 outlet. It is a Dual Rated 30/32 amp 415V three phase PDU with an IEC 60309 3P+N+E 6h 30A/32A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.
Main Features
- PDU distributes AC power to multiple servers and balances the load on the servers
- with Switched Outlet Monitored PDU, you can remotely monitor single-or three-phase voltage easily to ensure maximum power supply efficiency
- IEC 60320 C13/C15 receptacle type to ensure maximum dependability and optimal performance
- Three Phase phase PDU provides optimal power output with added usability
- IEC 60309 3P + N + E (IP44) plug/connector type for efficient connectivity and feasible power output
- 415 V AC input voltage for better reliance and maximum dependability
- 240 V AC output voltage for maximum dependability and added productivity
General Information
Name: Panduit P48E20M MS Power Distribution Unit, 30A/32A, 24-Pack, 24" C13/C15, 24" C13/15
Category: Panduit, Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 613056859074
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-P48E20M Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number P48E20M Packaged Quantity 1 Product Line SmartZone Product Name SmartZone G5 48-Outlets PDU Product Series G5 Product Type PDU Sector Data Comm & Networking
Output Voltage 240V AC PDU Type Switched Outlet Monitored Phase Three Phase Receptacle Detail 24 x IEC 60320 C13/C15, 24 x IEC 60320 C13/C15/C19/C21 Receptacle Type IEC 60320 C13/C15, IEC 60320 C13/C15/C19/C21
Color Black Depth 3" Height 70" Mounting Orientation Vertical Width 2.2"
Input Current 32A Input Voltage 415V AC Plug/Connector Type IEC 60309 3P + N + E (IP44)
Mount Type Rack Mount
