Product Overview

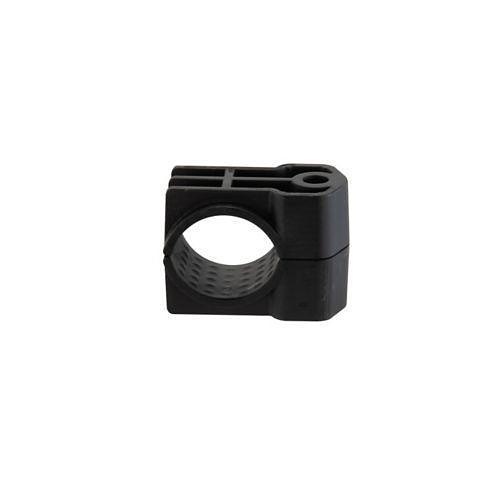

The CCPL1H1619-X Polymer One-Hole Cable Cleat is ideal for lower to medium short circuit faults in less harsh environments. The cable cleat is certified to IEC 61914;2015, tested up to 69.5 kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 16-19mm and installs direct to the cable tray rung via fixing hole and user-supplied M10 bolt. Features glass filled nylon material and rounded edges for cable insulation protection.
Main Features
- Certified to IEC 61914;2015
- Tested up to 69.5 kA peak fault current
- Compatible with cable diameter of 16-19mm

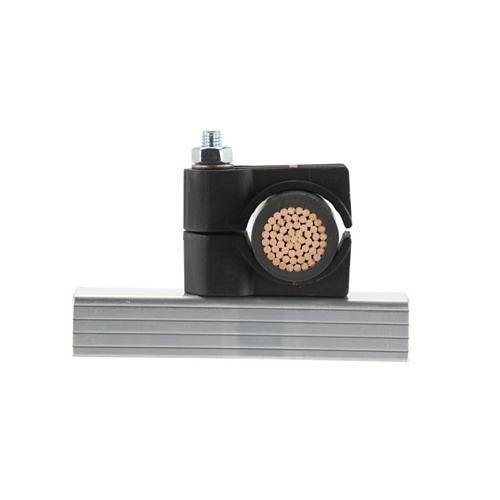

- Installs direct to cable tray rung via fixing hole and user-supplied M10 bolt
- Made of glass filled nylon material
- Rounded edges for cable insulation protection
- 1-hole clamp type design
- Suitable for lower to medium short circuit faults in less harsh environments
General Information
Name: Panduit CCPL1H1619-X Cable Cleat, 1-Hole Clamp Type
Category: Panduit, Tools & Hardware, Tools, Clips & Clamps
UPC Code: 613056732940
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-PL1H1619X Brand Name Panduit Manufacturer Part Number CCPL1H1619-X
Material Nylon
Color Black
Indoor/Outdoor Indoor, Outdoor
