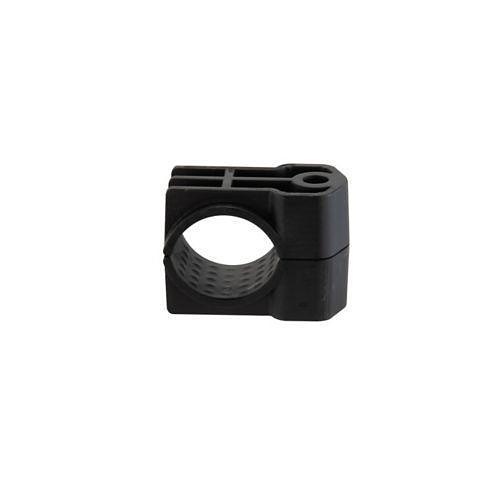

Panduit CCPL1H3238-X Cable Cleat, 1-Hole Clamp Type, Polymer

CCPL1H3238-X|P9-PL1H3238X

Panduit CCPL1H3238-X Cable Cleat, 1-Hole Clamp Type, Polymer

CCPL1H3238-X|P9-PL1H3238X

Sign In for Dealer Pricing

Become an ADI Customer
Hybrid Cloud Storage for Video
Panduit

Panduit CCPL1H3238-X Cable Cleat, 1-Hole Clamp Type, Polymer

CCPL1H3238-X | P9-PL1H3238X

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

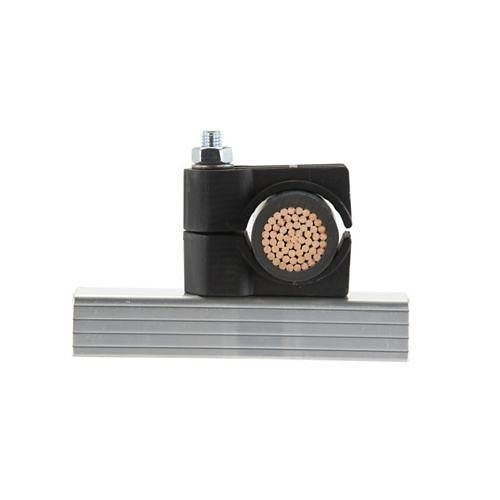

The CCPL1H3238-X Polymer One-Hole Cable Cleat is ideal for lower to medium short circuit faults in less harsh environments. The cable cleat is certified to IEC 61914;2015, tested up to 69.5 kA peak fault current and retains cables in the event of a short circuit fault. Compatible with cable diameter of 32-38mm and installs direct to the cable tray rung via fixing hole and user-supplied M10 bolt. Features glass filled nylon material and rounded edges for cable insulation protection.

General Information

Name: Panduit CCPL1H3238-X Cable Cleat, 1-Hole Clamp Type, Polymer
Category: Panduit, Tools & Hardware, Tools, Clips & Clamps
UPC Code: 613056732988
Country of Origin: . Country of origin is subject to change.

Specifications
