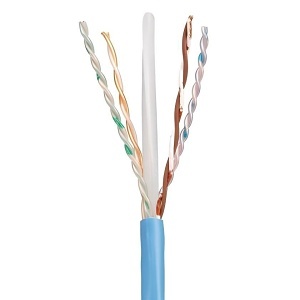

Panduit PUP6AHD04BU-G Copper Cable, CAT6A, 23 AWG, UTP, Blue
PUP6AHD04BU-G
|P9-PUP6AHBUG
Shop all Panduit
Panduit PUP6AHD04BU-G Copper Cable, CAT6A, 23 AWG, UTP, Blue
PUP6AHD04BU-G | P9-PUP6AHBUG
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The TX6A Cat 6A copper cable is constructed of 23AWG copper conductors with FEP Plenum (CMP) insulation. The copper conductors shall be twisted in pairs. All four pairs shall be surrounded by a metallic Vari-MaTriX tape cut into segments of varying length and a flame retardant, plenum-rated, blue jacket.
Main Features
- Best-in-class cable diameter delivers superior PSANEXT and PSAACRF suppression while retaining UTP EMI immunity
- Provides the highest worst-case margins above the industry standard for both electrical and alien crosstalk performance
- Improves fill capacity, cable management, reduces required bend radius and allows efficient use of pathways and spaces
- All testing and headroom based on 48-port/1RU panels
- Easy identification of remaining cable to reduce installation time and cable scrap
General Information
Name: Panduit PUP6AHD04BU-G Copper Cable, CAT6A, 23 AWG, UTP, Blue
Category: Panduit, Wire & Cable, Network Cables, Category 6A Network Cables
UPC Code: 613056450547
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-PUP6AHBUG Brand Name Panduit Manufacturer Part Number PUP6AHD04BU-G Product Name TX6A Copper Cable, Cat 6A, 23AWG, UTP, Blue Product Type Connector Cable
American Wire Gauge 24AWG Application/Usage 10GBASE-T Ethernet, Consolidation of network interconnects, Data center I/O Consolidation, Data center server virtualization, Parallel processing and high speed computing Cable Rating Plenum Cable Type Category 6a Jacket Type Plenum Material Copper Number of Pairs 4 Shielding No Solid or Stranded Solid
Connector Type UTP
Color Blue Package Type Reel
