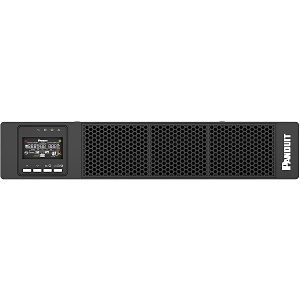

Panduit U01S12V SMARTZONE Uninterruptible Power Supply, 1KVA, 2U, 230V, VRLA, Sine Wave
U01S12V
|P9-U01S12V
Shop All Panduit
Panduit U01S12V SMARTZONE Uninterruptible Power Supply, 1KVA, 2U, 230V, VRLA, Sine Wave
U01S12V | P9-U01S12V
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Panduit® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
Specifications
ADI Part Number P9-U01S12V Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number U01S12V Packaged Quantity 1 Product Line SmartZone Product Name SmartZone UPS 1kVA Product Type Double Conversion Online UPS Sector Data Comm & Networking
Application/Usage Data Center, Enterprise, IT Equipment AVR Yes Backup/Run Time (Full Load) 6-Minute Backup/Run Time (Half Load) 19.1-Minute Battery Size 12V Hot Swappable Yes Number of Batteries 3 Output Voltage 220V AC, 230V AC, 240V AC Overload Protection Yes Phase Single Phase Receptacle Detail 8 x IEC 60320 C13 Receptacle Type IEC 60320 C13
Battery Capacity 9Ah Battery Characteristics VRLA Battery Chemistry Lead Acid Battery Life 5 Year Battery Recharge Time 6-Hour Battery Voltage 12V DC System Voltage 36 Replaceable Battery Yes
Energy Star Yes
Status Indicators Yes
Maximum Operating Elevation 9842.52' Maximum Operating Temperature 104°F (40°C) Thermal Dissipation 117.23W
EPO Port Yes Serial Port Yes
Alarm Fan Fault, Low Output Voltage, Over-charge, Over-discharge, Overheat, Overload, Short-circuit Network Management SNMPv3
Depth 16.9" Form Factor Rack, Tower Height 3.4" Rack Height 2U Weight 35.49lb Width 17.3"
Input Frequency 70Hz Input Voltage 110-300V AC, 176-264V AC Output Frequency 60Hz Plug/Connector Type IEC 60320 C14 Waveform Type Pure Sine Wave
Limited Warranty 3-Year
Environmentally Friendly Yes
