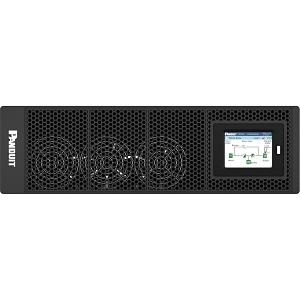

Panduit U05N11V SmartZone UPS, 5kVA, VRLA, 208V, NC, Single Phase, Double-Conversion On-Line Power Protection with Intelligent Network Card and Rail Kit
U05N11V
|P9-U05N11V
Shop All Panduit
Panduit U05N11V SmartZone UPS, 5kVA, VRLA, 208V, NC, Single Phase, Double-Conversion On-Line Power Protection with Intelligent Network Card and Rail Kit
U05N11V | P9-U05N11V
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Panduit® SmartZone™ UPS with maintenance free VRLA battery, 5-10kVA single phase 208 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT Infrastructure.
Main Features
- Rack/Tower convertible: Supports rack/tower installation with rotatable colorful touchscreen LCD panel
- Online Double Conversion with fully digital control (EMEA unit only): Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
- Wide input voltage range: 110-280V AC covering extended voltage range, applicable for severe situation such as large power grid fluctuation
- High efficiency: Up to 98%, reducing the energy waste and the cost of electricity
- Energy savings: High Efficiency on Smart ECO mode for Online Double Conversion models
- Green design: RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
- Output unity power factor: Means more active power for IT equipment load
- Input power factor: Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
- Expandable battery packs: Allows to connect maximum five external battery packs, extending the UPS backup running time
- Intelligent Battery Management: Three-stage battery charging method matching the most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
General Information
Name: Panduit U05N11V SmartZone UPS, 5kVA, VRLA, 208V, NC, Single Phase, Double-Conversion On-Line Power Protection with Intelligent Network Card and Rail Kit
Category: Panduit, Batteries & Power Supplies, Power Management, UPS
UPC Code: 613056825277
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number P9-U05N11V Application/Usage Computer, Data Center, Edge Computing, IT Equipment Brand Name Panduit Manufacturer PANDUIT CORP Manufacturer Part Number U05N11V Product Line SmartZone Product Model U05N11V Product Name SmartZone U05N11V 5000VA Rack/Tower UPS Product Type Double Conversion Online UPS Sector Data Comm & Networking
AVR Yes Dataline Protection RJ-45 Hot Swappable Yes Number of Batteries 20 Output Voltage 208V AC, 240V AC Overload Protection Yes Phase Single Phase Receptacle Detail 4 x NEMA L6-30R Receptacle Type NEMA L6-30R Software Included Yes
Battery Capacity 9.00Ah Battery Characteristics VRLA Battery Chemistry Sealed Lead Acid (VRLA) Battery Life 5-Year Battery Recharge Time 6.00hr Battery Voltage 12.00V Replaceable Battery Yes
Energy Star Yes
Status Indicators Yes
Maximum Operating Elevation 9842' Maximum Operating Temperature 104°F Sound Emission 55dB Thermal Dissipation 312.71W
Network (RJ-45) Yes Serial Port Yes
Color Green Depth 26.20" Form Factor Rail Mount Height 5.20" Rack Height 2U Weight 187.39lb Width 17.30"
Input Frequency 70Hz Input Voltage 120V AC, 230V AC Output Frequency 60Hz Plug/Connector Type NEMA L6-30R Surge Energy Rating 600J Waveform Type Pure Sine Wave
Mount Type DIN Rail Mount, Rack Mount, Tower Mount
Additional Warranty Information 3 Years for UPS & EBP 2 Years for Battery Limited Warranty 3-Year
Environmentally Friendly Yes Package Contents - SmartZone U05N11V 5000VA Rack/Tower UPS
- Intelligent Network Management Card
