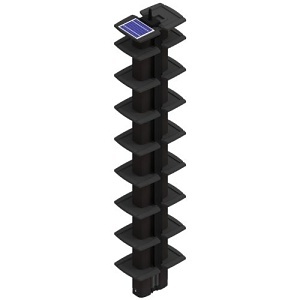

Protech 30840211 SOLARIS Infrared Barrier, 5-Cell, Double Face TX/RX, Anti-Condensation Caps, Solar Panel and Battery, 6.5' (2m)
30840211
|PK-30840211
Shop All Protech
Protech 30840211 SOLARIS Infrared Barrier, 5-Cell, Double Face TX/RX, Anti-Condensation Caps, Solar Panel and Battery, 6.5' (2m)
30840211 | PK-30840211
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Protech 30840211 SOLARIS 6.5 ft (2 m) Double Face TX/RX Infrared Barrier delivers wireless, solar-powered perimeter protection with bi-directional detection capability from a single tower location. Featuring 5 infrared cells on each of two opposing faces, this double face configuration is ideal for corner protection, 90° perimeter transitions, and L-shaped fence lines where two detection links converge. The integrated Connect board communicates via a secure 915 MHz LoRa mesh network with 128-bit AES encryption to the Radio Coordinator (30790020), eliminating the need for hardwired cabling between towers. Fully autonomous solar panel and battery power means no external infrastructure is required - simply bolt the tower to a concrete pad and your perimeter is operational. Anti-condensation caps protect the optical surfaces, while built-in audible and visual alignment aids ensure fast, precise TX/RX setup. With a maximum range of 328 feet (100 m) per link and comprehensive alarm outputs including intrusion, tamper, power failure, and loss of radio link, the SOLARIS 30840211 is engineered for utilities, substations, logistics yards, and other high-security applications requiring flexible corner and transition zone coverage.
Main Features
- Maximum detection range of 328 feet (100 m) between TX and RX towers for reliable perimeter coverage
- Available tower heights: 3.2 ft (1 m), 6.5 ft (2 m), 8 ft (2.5 m), and 10 ft (3 m) in single face and double face configurations
- 3 to 10 infrared cells per tower depending on height, with 4 selectable detection channels
- Comprehensive alarm outputs: Intrusion, Disqualification, Tamper, Anti-climbing cap, Power failure, Low battery, and Loss of radio link
- Dynamic meshed radio network transmits alarms to the Radio Coordinator (30790020) for centralized monitoring
- 915 MHz LoRa modulation radio frequency with 19 selectable channels for interference-free wireless communication
- 128-bit AES data encryption secures all wireless communications between towers and the Radio Coordinator
- Fully autonomous solar panel and battery power supply in each tower - no external power infrastructure required
- Built-in audible and visual alignment aid signals on all towers for fast, precise TX/RX optical alignment during installation
- Wide operating temperature range: -40°F to +158°F (-40°C to +70°C) with CE electromagnetic compliance
General Information
Name: Protech 30840211 SOLARIS Infrared Barrier, 5-Cell, Double Face TX/RX, Anti-Condensation Caps, Solar Panel and Battery, 6.5' (2m)
Category: Protech, Batteries & Power Supplies, Power Adapters & Chargers, Solar Chargers
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number PK-30840211 Brand Name Protech Manufacturer Part Number 30840211 Product Line SOLARIS Product Model 30840211 Product Series NG
Limited Warranty 2-Year
