Product Overview

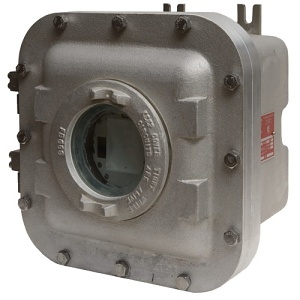

The SDI-77XL2-EX Model of Stereo Doppler Motion Detection Sensor was developed to protect Hazardous Locations due to the presence of flammable gasses or vapors, combustible dusts or easily ignitable fibers or flyings. The SDI-77XL2-EX electronic assembly is configured to be easily inserted into a special explosion-proof enclosure.
Main Features
- Two receiving channels with the ability to eliminate vibration and periodically moving objects as sources of false alarms
- Proprietary integrated circuit design
- User selectable form C relay output.
- Ten-position digital switch adjusts the overall size of the sensor's detection area
- Ten-position digital switch adjusts the amount of movement required to initiate an alarm condition
- Red Alarm LED, Green ECI (Environmental Caution Indicator) LED with internal disable switch
- A component or power failure will cause the sensor to lock-in alarm
- Two-position switch adjusts the sensor's immunity to birds and small animals
- Housing tamper with terminal connection
General Information
Name: Protech SDI-77XL2-EX-IND Motion Sensor
Category: Protech, Intrusion, Motion & Perimeter Sensors, PIR Motion Sensors
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number PK-77XL2EXI Brand Name Protech Manufacturer Protection Technologies, Inc Manufacturer Part Number SDI-77XL2-EX-IND Product Model SDI-77XL2-EX Product Name SDI-77XL2-EX Motion Sensor Product Type Motion Sensor
Connectivity Technology Wired Maximum Motion Sensing Distance 100' Passive Infrared Sensor (PIR) No
Color Green, Red
Power Source DC Power
Mount Type Wall Mount
Country of Origin US Features Explosion-proof enclosure Indoor/Outdoor Indoor
