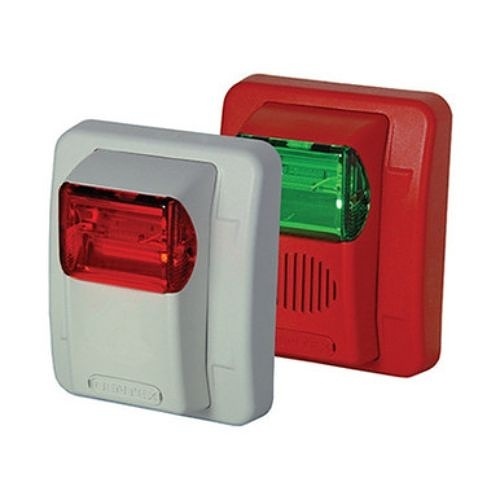

Image of PL-CS24WGWWP

Potter CS-24WGW-WP CS Series Outdoor Colored Lens Strobe, Outdoor, Green Lens, Off-White

CS-24WBR-WP|PL-CS24WGWWP

Potter CS-24WGW-WP CS Series Outdoor Colored Lens Strobe, Outdoor, Green Lens, Off-White

CS-24WBR-WP|PL-CS24WGWWP
Key Features
  • Outdoor colored lens strobe with green lens
  • Dependable audible and visual alarms
  • Weatherproof enclosure made of clear Lexan
Key Features
  • Outdoor colored lens strobe with green lens
  • Dependable audible and visual alarms
  • Weatherproof enclosure made of clear Lexan

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Outdoor colored lens strobe with green lens
  • Dependable audible and visual alarms
  • Weatherproof enclosure made of clear Lexan
Potter Electric Signal, LLC

Potter CS-24WGW-WP CS Series Outdoor Colored Lens Strobe, Outdoor, Green Lens, Off-White

CS-24WBR-WP | PL-CS24WGWWP

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Application

The CS/CHS-WP Series Outdoor Colored Lens Signals are wall mount, low profile strobes and horn/strobes that offer dependable audible and visual alarms for warning and emergency notification in outdoor locations. Applications include emergency communication, severe weather, emergency response and many more.

Description

The CS/CHS-WP Series Outdoor Colored Lens Signals are 24VDC units available in lens colors of amber, blue, green and red. The Series has a fixed 75 candela strobe. They have a minimal operating current and a minimum flash rate of 1Hz regardless of input voltage. The weatherproof enclosure is made of clear Lexan® which provides maximum visibility and reliability for effective visible signaling, allowing full 75cd output. The strobes can be synced using a Gentex sync protocol or the AVSM Sync Module.

The Colored Lens Series is shipped with a die cast universal 4" mounting bracket which incorporates the popular Super-Slide® feature that allows the installer to easily pre-wire the system and test for supervision. The product also features a locking mechanism that secures the signal to the bracket without showing any screws. The Colored Lens Series also features the Checkmate® - Instant Voltage Verification Feature which allows the installer to check the voltage drop, current draw, and match against the blue print.

The CS/CHS-WP Series devices are available in two different versions. The standard version comes with a surface-mount back box (WPBB) to install directly on a wall. The Low Profile (LP) versions come with a low profile back box (WPLPBB) designed to be installed on a flushmounted electrical box.

Product Listings

ANSI/UL 464 and 1638
CSFM 7135-0328:0212 (CHS-WP Series)
CSFM 7135-0328:0213 (CS-WP Series)

Main Features

  • Outdoor colored lens strobe with green lens
  • Dependable audible and visual alarms
  • Weatherproof enclosure made of clear Lexan
  • Fixed 75 candela strobe with minimal current
  • Sync using Gentex protocol or AVSM Module
  • Includes die cast universal 4" mounting bracket
  • Locking mechanism with no visible screws
  • Checkmate - Instant Voltage Verification Feature
  • Available in standard and low profile versions
  • ANSI/UL 464 and 1638 certified

General Information

Name: Potter CS-24WGW-WP CS Series Outdoor Colored Lens Strobe, Outdoor, Green Lens, Off-White
Category: Potter Electric Signal, LLC, Fire, Fire Notification Appliances, Strobes
UPC Code: 700217037003
Country of Origin: United States. Country of origin is subject to change.
