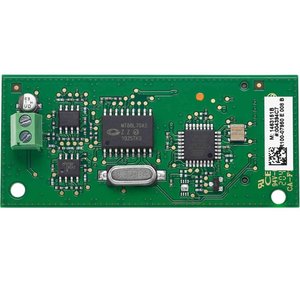

Resideo PRODCM Dialer Capture Module for LTEM-PA and LTEM-PV Advanced Modular Communicator
PRODCM
|PRODCM
Shop All Resideo
Resideo PRODCM Dialer Capture Module for LTEM-PA and LTEM-PV Advanced Modular Communicator
PRODCM | PRODCM
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
PRODCM is an optional Dialer Capture Module for control panels that sends Contact ID alarm signals via the control panel's dialer. PRODCM is used for control panels that do not support Resideo ECP data communication, sending Contact ID alarm signals via the control panel's TELCO dialer. The Dialer Capture Module replaces the phone line and simulates the phone service to the control panel. The alarms are then sent to AlarmNet for routing to the central monitoring station. Compatible Communicators include the LTEM-PV and LTEM-PA.
Main Features
- Dialer operation is set for DTMF Tone Dialing for each phone number (pulse dialing is not supported and must be disabled in the control panel)
- PABX field is disabled (the Dialer Capture module does not communicate through a PABX)
- Phone numbers and account numbers are programmed (to ensure the maximum number of messages can be transmitted to the central station before a communication failure occurs, ensure the control panel is programmed with a primary and secondary central station number)
- Report format is set to Contact ID for each phone number
- The maximum number of retry attempts is programmed
- Desired zone and partition reports are enabled.
General Information
Name: Resideo PRODCM Dialer Capture Module for LTEM-PA and LTEM-PV Advanced Modular Communicator
Category: Resideo, Intrusion, Alarm Communicators & Equipment, Alarm Communicator Modules
UPC Code: 194160007228
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
ADI Part Number PRODCM Application/Usage Sending Contact ID alarm signals via the control panel's TELCO dialer Brand Name Resideo Country of Origin MX Manufacturer Resideo Manufacturer Part Number PRODCM Product Model PRODCM Product Name PRODCM Dialer Capture Module Product Type Speech Dialer
Device Supported Control Panel
Minimum Operating Temperature 32°F
Width 1.2"
Input Voltage 3.8V DC Power Source AC Power
Installation Type Hybrid (DIY + Professional) Length 2.6"
Additional Information Sending Contact ID alarm signals via the control panel's TELCO dialer Compatibility LTEM-PA, LTEM-PV
