QSC UNDX2IO+ Dante/AES67 Network Audio Wallplate, Attero Tech, White
UNDX2IO+
|QB-UNDX2IO
Shop all QSC
QSC UNDX2IO+ Dante/AES67 Network Audio Wallplate, Attero Tech, White
UNDX2IO+ | QB-UNDX2IO
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

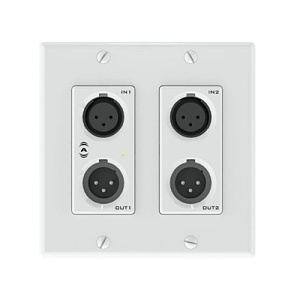

The unDX2IO+ is a cost-effective multi-IO Dante audio network wall plate. The unDX2IO+ features two balanced mic/line XLR inputs, two balanced XLR line outputs, and two balanced line outputs on depluggable connectors on the side of the unit. All inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX2IO+ is designed to fit into all dual-gang US junction boxes, mud rings, and old work brackets. The unDX2IO+ is PoE enabled, so all connectivity (power, control, and data) is provided by a single CAT5/6 cable. The wall plate's size and I/O density make it easy to put Dante connectivity wherever it's needed.
Main Features
- Dante Domain Manager ready
- Small form factor allows for easy co-location near analog sources or sinks
- PoE Powered (802.3af)
- Four input gains to accommodate common line levels and dynamics
- Analog output gain is software-adjustable between 0 dB and -60 dB to accommodate all types of line input audio equipment, both consumer and professional levels
- Industry-standard +20 dBu maximum input levels (at 0 dB input gain) and +20 dBu maximum output levels
- Q-SYS Extension allows for drag-and-drop integration into your Q-SYS design
General Information
Name: QSC UNDX2IO+ Dante/AES67 Network Audio Wallplate, Attero Tech, White
Category: QSC, Pro AV, Commercial Audio, Pro Accessories & Mounts
UPC Code:
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number QB-UNDX2IO Brand Name QSC Manufacturer Part Number UNDX2IO+ Product Line Q-SYS Product Model unDX2IO+ Product Series Attero Tech
Depth 2" Height 4.2" Weight .6 lb Width 3.5"
Length 2" Mount Type Wall Mount
Limited Warranty 3-Year
