Adams Rite 2190-411-203-32D Deadbolt/Dead Latch
2190-411-203-32D
|R8-219041123
Shop all Adams Rite by ASSA ABLOY
Adams Rite 2190-411-203-32D Deadbolt/Dead Latch
2190-411-203-32D | R8-219041123
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

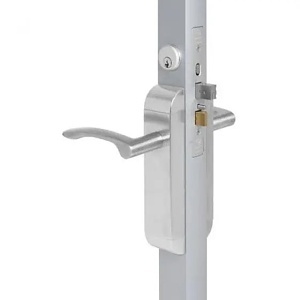

The 2190-411-203-32D from Adams Rite is a dual force lock with standard flat strike, electrified trim set and 1-1/2" backset in satin stainless. The 2190 series Deadlock / Deadlatch combines the access control capabilities of a latch with the security of a deadbolt. The key retracts and extends the deadbolt (and deadlatch) from either side. The exterior lever retracts the latch only while the inside lever retracts the deadbolt and latch simultaneously for fast, easy, panic-proof exiting. It operates in such a way that the latch holdback feature activated or deactivated by turning key to retract latch and sliding holdback button on faceplate down to hold and up to release. It is intended for out-swinging doors.
Main Features
- Satin stainless finish
- Electrified trim set
- Faceplate measures 1" x 6-7/8"
- Clear anodized faceplate finish
- Standard square handle
- Auxiliary deadlatch pin is made of stainless steel, deadlocks latch bolt prevents "loiding" or case-knife entry
- The Dual Force 2190 Deadlocks are operable by any standard 1-5/32" diameter mortise cylinder with MS cam
- Grade 1 strength
- Latchbolt is made of solid brass that measures 5/8" throw, it is easily reversible using only a screwdriver
- Deadbolt is made of stainless steel that measures 1" throw
General Information
Name: Adams Rite 2190-411-203-32D Deadbolt/Dead Latch
Category: Adams Rite by ASSA ABLOY, Access Control, Locking Devices, Deadbolts
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number R8-219041123 Brand Name Adams Rite by ASSA ABLOY Manufacturer Part Number 2190-411-203-32D Product Name Adams Rite 2190-411-203-32D Dual Force Lock with Standard Flat Strike, Electrified Trim Set and 1-1/2" Backset in Satin Stainless Product Type Dual Force Lock
Finishing Clear Anodized 628, Satin Stainless
