Product Overview

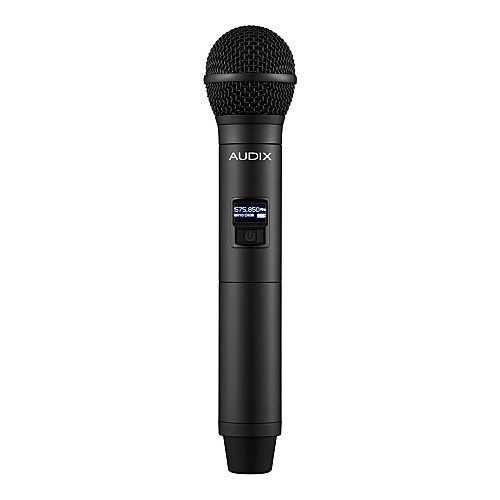

The Audix AP61 OM2 L10 is a Performance Series single-channel true diversity receiver and dual-transmitter bundle designed to deliver reliable long-range wireless audio for preachers, guest speakers, and announcers in houses of worship and live stage applications. It includes an R61 single-channel true diversity receiver, a B60 bodypack transmitter, an ADX10 cardioid condenser lavalier mic, and one H60 transmitter with an OM2 hypercardioid dynamic microphone capsule. With conveniences such as one-touch sync and auto scan, a high-contrast LCD, and 207 pre-coordinated frequencies, the bundle is easy to configure and efficient to operate. It ships with two antennas, two BNC antenna cables, an audio cable, four AA batteries, a power supply, and a rackmount kit.
General Information
Name : Audix AP61OM2 Wireless Microphone System with R61 Receiver H60 Transmitter OM2 Capsule Module 522 MHz 586MHz , Audix
Category : Pro Microphones, Headphones & Headsets
UPC Code : 999999525120
Specifications
General Information
ADI Part Number : RA-AP61OM2
Brand Name : Audix
Manufacturer : Audix Microphones
Manufacturer Part Number : AP61OM2
Product Line : Performance
Product Model : AP61OM2
Product Name : Performance Wireless Microphone System
Product Type : Wireless Microphone System
Weight (Approximate) (g) : 870
Technical Information
Maximum Frequency Response (Hz) : 18000
Maximum Operating Frequency (Hz) : 586000000
Minimum Frequency Response (Hz) : 45
Minimum Operating Frequency (Hz) : 522000000
Operating Range : 450'
Operating Range (mm) : 137160
Polar Pattern : Hyper-cardioid
Audio
Maximum Frequency Response : 18 kHz
Minimum Frequency Response : 45 Hz
Signal to Noise Ratio (SNR) : 105 dB
Signal to Noise Ratio (SNR) (dB) : 105
Battery Information
Battery Run Time : 14 Hour
Battery Run Time (Second) : 50400
Battery Size Supported : AA
Number of Batteries Supported : 2
Interfaces/Ports
XLR : Yes
Network & Communication
Maximum Operating Frequency : 586 MHz
Minimum Operating Frequency : 522 MHz
Physical Characteristics
Depth : 206 mm
Depth (mm) : 206
Height : 44 mm
Height (mm) : 44
Weight (Approximate) : 1.92 lb
Width : 205 mm
Width (mm) : 205
Warranty
Limited Warranty : 1 Year
Limited Warranty (Second) : 31540000
Miscellaneous
Package Contents : <ul><li>1 x R61 64 MHz True Diversity Receiver</li><li>1 x H60 Handheld Transmitter with OM2 Capsule Module</li><li>2 x Antennas</li><li>1 x Audio Cable</li><li>1 x Clip</li><li>1 x Pouch</li><li>2 x AA Batteries</li><li>and more below</li></ul>, 1 x Carrying Case, 1 x Power supply, 1 x Rackmount Hardware, 1 x User Guide, 2 x BNC Cables
