Product Overview

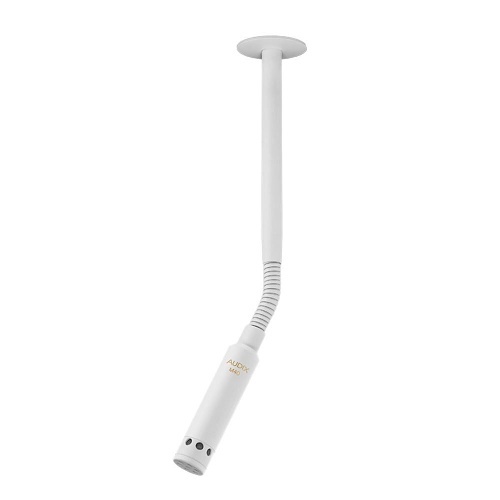

The M40 is a miniaturized condenser microphone with a fully integrated preamp designed with very high sensitivity for distance miking. The primary applications for the ceiling-mounted M40 include Video and Teleconferencing (VTC), distance learning, hospital rooms, surveillance, and ambient room miking. The M40 ceiling microphone has complete immunity from RF interference caused by cell phones and GSM devices. The M40, which comes with a cardioid capsule, is also available with hypercardioid or shotgun capsules, allowing for the microphone to be used in a wide variety of applications. The M40 installed ceiling microphone is easy to install requiring only that a 5/8 inch hole be drilled in the ceiling with no additional tools required. The cable assembly is equipped with a terminal block connector. For installations where a plenum-rated cable is to be used, a UL-rated metal plenum junction box is available. Designed, machined, assembled, and tested by AUDIX in the USA.
Main Features
- Optimized for voice recognition
- Immunity from RF interference
- Point and shoot directivity
- Integrated preamp circuitry
- Ideal for Video teleconferencing, surveillance, Schools
General Information
Name: Audix M40W6 Miniature High Output Ceiling Microphone
Category: Audix, Pro AV, Commercial Audio, Pro Microphones, Headphones & Headsets
UPC Code: 687471292204
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number RA-M40W6 Brand Name Audix Manufacturer Part Number M40W6
Impedance 150 ohms Polar Pattern Hyper-cardioid
Maximum Frequency Response 19 kHz Minimum Frequency Response 30 Hz
Color White
Length 16.12"
Limited Warranty 3-Year
