Comprehensive CDA-HD14018G 1x4 HDMI Full UHD 4K60 18Gb Distribution Amplifier Splitter

Comprehensive CDA-HD14018G 1x4 HDMI Full UHD 4K60 18Gb Distribution Amplifier Splitter

CDA-HD14018G|RH-CDAHD1401

Comprehensive CDA-HD14018G 1x4 HDMI Full UHD 4K60 18Gb Distribution Amplifier Splitter

CDA-HD14018G|RH-CDAHD1401
Key Features
What's Included
  • Distribute one HDMI input to four simultaneous HDMI outputs
  • Supports Ultra-HD resolutions up to 4k2kat30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2kat60Hz with 12bit YCBCR 4:4:4, high resolution VESA mode video format up to QSXGAat60Hz
  • 12-bit Deep Full HD, Full 3D, HDR
Key Features
What's Included
  • Distribute one HDMI input to four simultaneous HDMI outputs
  • Supports Ultra-HD resolutions up to 4k2kat30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2kat60Hz with 12bit YCBCR 4:4:4, high resolution VESA mode video format up to QSXGAat60Hz
  • 12-bit Deep Full HD, Full 3D, HDR

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • Distribute one HDMI input to four simultaneous HDMI outputs
  • Supports Ultra-HD resolutions up to 4k2kat30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2kat60Hz with 12bit YCBCR 4:4:4, high resolution VESA mode video format up to QSXGAat60Hz
  • 12-bit Deep Full HD, Full 3D, HDR
Comprehensive

Comprehensive CDA-HD14018G 1x4 HDMI Full UHD 4K60 18Gb Distribution Amplifier Splitter

CDA-HD14018G | RH-CDAHD1401

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

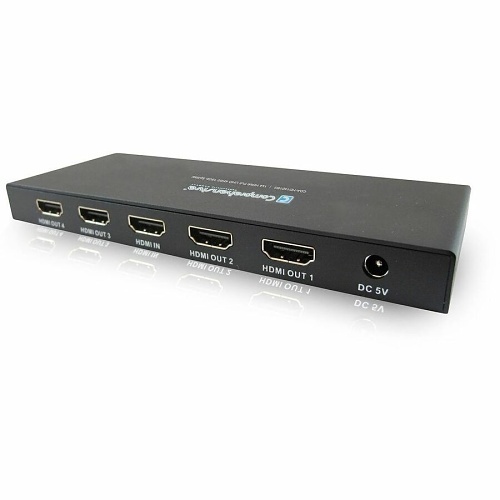

Comprehensive's HDMI 1x4 Splitter supports Ultra-High-Definition (UHD) 4K @ 60Hz 2160p!

Our high performance HDMI 1x4 splitter is an advanced solution for splitting one HDMI input to four simultaneous HDMI outputs. The HDMI splitter also supports HDCP 2.2, 3D, 12-bit Deep Color as well as High Definition Lossless Audio. With EDID selections, users can choose between TV (downstream) or STD (fixed) settings. The splitter supports video signals up to Ultra-high-definition UHD 4K@60Hz (YUV444), and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss. In addition, the HDMI 1x4 splitter has a slim chassis design with an enclosure made of durable metal.

Comprehensive's HDMI 1x4 splitter is perfect for huddle spaces, classrooms, collaboration, conference rooms, showroom displays, lecture halls, retail sales displays and anywhere in between. All components are RoHS Compliant and come with a 3 Year Hassle-Free Warranty.

Why choose Comprehensive?

Since 1974 Comprehensive has been the Pro A/V and IT industry standard for professional connectivity performance, reliability and value. That's why millions of Comprehensive connectivity products are in use at stadiums, in broadcast and recording studios, stages, boardrooms, classrooms, government installations and living rooms around the world. At Comprehensive, we stand for one thing above all else - exceeding our customer's expectations every time with new and innovative high value products and the same old-fashioned customer service that built our business. We know in today's busy world, you have more important things to worry about than connectivity products. That is why we strive every day to make your life, and connectivity a little easier.

Main Features

  • Distribute one HDMI input to four simultaneous HDMI outputs
  • Supports Ultra-HD resolutions up to 4k2kat30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2kat60Hz with 12bit YCBCR 4:4:4, high resolution VESA mode video format up to QSXGAat60Hz
  • 12-bit Deep Full HD, Full 3D, HDR
  • Wide Frequency Range: 25MHz - 600MHz
  • Compliant with HDMI 2.0a, HDMI 1.4b (1080p@60Hz) and DVI 1.0 specification
  • Integrated HDCP 1.4 and HDCP 2.2 decryption/encryption engines
  • LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio support, and HD losless audio
  • Smart EDID control
  • Durable Metal Enclosure
  • 3 Year Warranty

General Information

Name: Comprehensive CDA-HD14018G 1x4 HDMI Full UHD 4K60 18Gb Distribution Amplifier Splitter
Category: Comprehensive, Pro AV, Commercial Video Signal Distribution, Pro HDMI Splitters
UPC Code: 808447078732
Country of Origin: China. Country of origin is subject to change.
