Comprehensive CHE-HDBT250 Pro AV/IT Integrator Series, HDBaseT 4K60 18G HDMI Extender Kit with Audio, RS232, IR, PoC up to 42'
CHE-HDBT250|RH-CHEHDBT25
Comprehensive CHE-HDBT250 Pro AV/IT Integrator Series, HDBaseT 4K60 18G HDMI Extender Kit with Audio, RS232, IR, PoC up to 42'
CHE-HDBT250|RH-CHEHDBT25
Key Features
What's Included
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 18 Gbps video bandwidth
- The maximum extended transmission distance via a single Cat5e/6 cable 394'/120m for 4K2K signal, 492'/150m for 1080p signal
Key Features
What's Included
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 18 Gbps video bandwidth
- The maximum extended transmission distance via a single Cat5e/6 cable 394'/120m for 4K2K signal, 492'/150m for 1080p signal
.jpg)
Key Features
What's Included
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 18 Gbps video bandwidth
- The maximum extended transmission distance via a single Cat5e/6 cable 394'/120m for 4K2K signal, 492'/150m for 1080p signal
Comprehensive
Comprehensive CHE-HDBT250 Pro AV/IT Integrator Series, HDBaseT 4K60 18G HDMI Extender Kit with Audio, RS232, IR, PoC up to 42'
CHE-HDBT250 | RH-CHEHDBT25
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

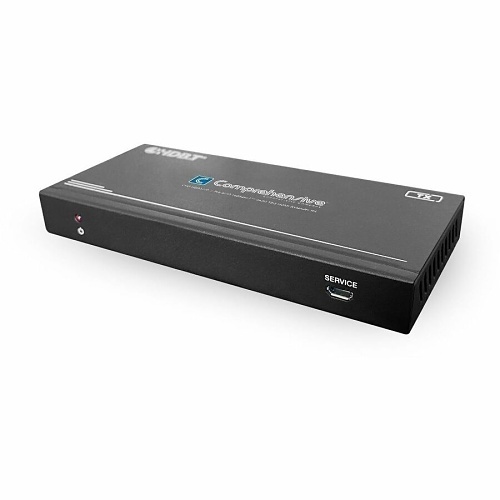

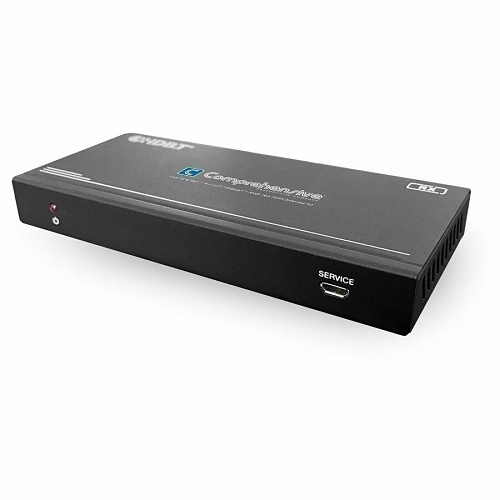

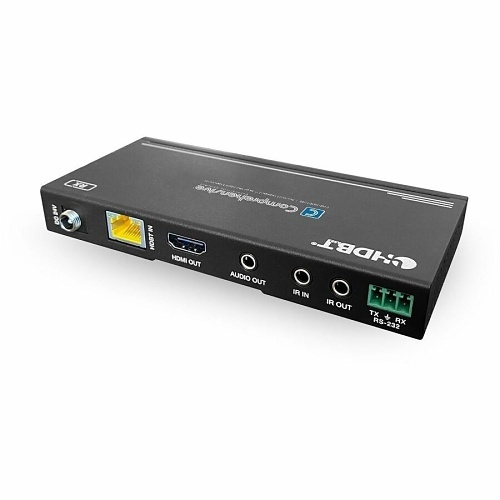

Comprehensive's CHE-HDBT250 is an HDBaseT 2.0 Extender with HDMI, audio, IR and RS232 connectivity. This extender supports video resolutions up to 4K at 60Hz 4:4:4 18Gbps. It also supports de-embeded audio for L/R audio output and PoC function. In addition, this extender is equipped with bi-directional IR and RS232 pass-through which allows for source and display control up to 492'.
Main Features
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 18 Gbps video bandwidth
- The maximum extended transmission distance via a single Cat5e/6 cable 394'/120m for 4K2K signal, 492'/150m for 1080p signal
- Support for one HDMI loop output on the transmitter
- De-embedded audio to analog stereo output on receiver
- Supports bi-directional IR, RS-232 and CEC pass-through
- HDR, HDR10+, Dolby Vision and HLG function supported
- Supports PoC (Power over Cable) function
- Compact design for easy and flexible installation
General Information
Name: Comprehensive CHE-HDBT250 Pro AV/IT Integrator Series, HDBaseT 4K60 18G HDMI Extender Kit with Audio, RS232, IR, PoC up to 42'
Category: Comprehensive, Pro AV, Commercial Video Signal Distribution, Pro HDMI Extenders
UPC Code: 808447084498
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number RH-CHEHDBT25 Brand Name Comprehensive Manufacturer Comprehensive Connectivity Company Manufacturer Part Number CHEHDBT250 Packaged Quantity 1 Product Line Pro AV/IT Integrator Series Product Model CHE-HDBT250 Product Name Pro AV/IT Integrator Series HDMI Extender Product Type HDMI Extender
-
Maximum Data Transfer Rate 2.25 GB/s
-
Operating Temperature (T-T) 0-40°C Storage Temperature (T-T) -20-60°C
-
HDMI Yes Network (RJ-45) Yes Number of HDMI Ports 2 Number of Network (RJ-45) Ports 2 Number of USB Ports 2
-
Color Black Depth 2.6" Height 0.7" Material Metal Width 5.5"
-
Input Voltage 230V AC
-
Limited Warranty 3-Year
-
Compatibility Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS:X, DTS-ES, DTS-HD Express, DTS-HD High Resolution, DTS-HD Master Audio Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - Pro AV/IT Integrator Series HDMI Extender
- 1 x Installation Guide
- 1 x Power Supply
- 2 x 3-pin Phoenix Connector
- 4 x Mounting Brackets & Screws
- 1 x IR Emitter
- 1 x IR Receiver
