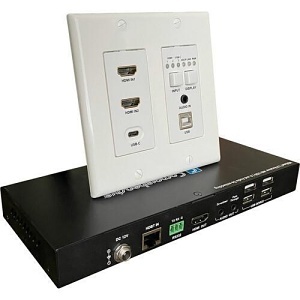

Comprehensive CHE‑HDBTWP242K HDBaseT 4K Dual‑Gang HDMI/USB‑C Wall Plate Extender Kit up to 230 ft with Audio and USB 2.0
CHE-HDBTWP242K
|RH-CHEHP242K
Shop All Comprehensive
Comprehensive CHE‑HDBTWP242K HDBaseT 4K Dual‑Gang HDMI/USB‑C Wall Plate Extender Kit up to 230 ft with Audio and USB 2.0
CHE-HDBTWP242K | RH-CHEHP242K
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Pro AV/IT HDBaseT 4K Dual-Gang HDMI/UVC Kit from Comprehensive consists of a Decora-style wall plate transmitter and durable metal receiver that enable you to transmit video up to 4K60 HDMI or UVC video and audio signals. This 3 x 1 extender transmitter has one USB Type-C USB 2.0 input, two HDMI 1.4 inputs, and an HDBaseT output. The receiver has one HDBaseT input and one HDMI output. The 2-gang wall-plate transmitter and compact receiver kit is ideal for educational uses, meeting, huddle spaces, and house-of-worship AV use. Transmit an HDMI or USB video signal at rates up to UHD 4K60 4:2:0 and at distances up to 230' over a single Cat 6/6a/7 UTP cable. Supports analog HDMI audio de-embedding and one-way analog pass-through from transmitter to receiver. Supports automatic or manual switching between connected HDMI and USB Type-C sources, enabling flexible and reliable switching between three active HDMI sources.
Specifications
ADI Part Number RH-CHEHP242K Brand Name Comprehensive Manufacturer Part Number CHE-HDBTWP242K
Number of HDMI Inputs 2 Number of USB Ports 1
Limited Warranty 3-Year
Environmental Certification CE, FCC, RoHS Environmentally Friendly Yes Package Contents 2 x 3-Pin RS232 Terminal Block, 2 x Mounding Bracket and Screw, 2-Pin Terminal Block, 4 x Mounting Screw, Comprehensive Pro AV/IT HDBaseT 4K Dual-Gang HDMI/UVC Video Wall Plate Extender Kit (Up to 230'), Power Adapter (12V, 1A), Receiver, Transmitter, U.S. Dual-Gang Decora Wall Plate
