RDL DDB-RN40 Wall-Mounted Bi-Directional Mic / Line Dante Interface 4 x 2
DDB-RN40
|RL-DDBRN40
Shop All Radio Design Labs
RDL DDB-RN40 Wall-Mounted Bi-Directional Mic / Line Dante Interface 4 x 2
DDB-RN40 | RL-DDBRN40
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

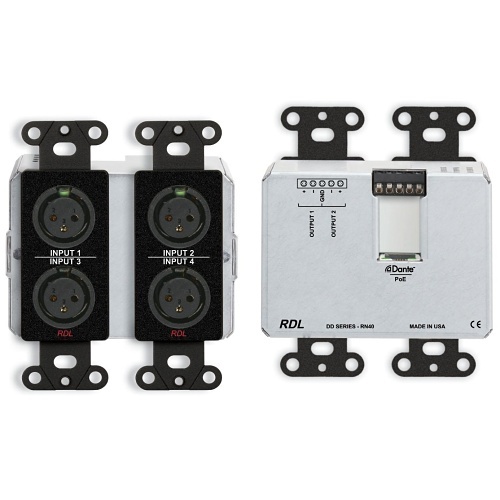

The DDB-RN40 is a complete wall-mounted Dante audio network interface. It features four XLR mic or line inputs on the front panels and two line outputs on a rear-panel detachable terminal block. The module is configured and adjusted using RDL CONSOLE or other network control software. The DDB-RN40 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DDB-RN40 is PoE powered, and is available in multiple finishes with optional customized graphics.
Main Features
- Dante Network Interface for Four Audio Inputs and Two Audio Outputs
- Four XLR Front-Panel Inputs
- Two Outputs on Rear Panel Detachable Terminal Block
- Module is Configured and Adjusted Using Network Control Software
- Q-SYS Plug-InAvailable for Configuring in Q-SYS Environment
- Converts Four Standard XLR Mic or Line Audio Sources to Dante Network Channels
- Each Input Gain is Selected by Software
- Mic Gain - 35 dB, 42 dB or 59 dB
- Line Gain - Unity or 12 dB
- 48 V Mic Phantom (P48) Selected by Software
General Information
Name: RDL DDB-RN40 Wall-Mounted Bi-Directional Mic / Line Dante Interface 4 x 2
Category: Radio Design Labs, Pro AV, Commercial Audio, Pro Wall Plates
UPC Code: 813721012791
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number RL-DDBRN40 Brand Name Radio Design Labs Manufacturer Part Number DDB-RN40
