RDL D-J3M Mic/Line Wall-Mounted Input Assembly with XLR and Mini-Jack Line Inputs
D-J3M
|RL-DJ3M
RDL D-J3M Mic/Line Wall-Mounted Input Assembly with XLR and Mini-Jack Line Inputs
D-J3M | RL-DJ3M
Please sign in to view pricing, availability, and to add to cart.
Product Overview

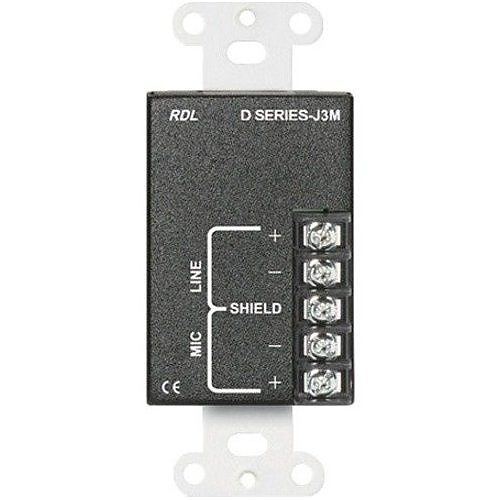

The D SERIES-J3M is a complete audio input panel assembly. The front panel features a female XLR jack and a single stereo mini-jack. The XLR is connected directly to the rear-panel barrier block. The mini-jack is intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the rear-panel terminal block for connection to 10 kΩ or higher input impedance line level module or equipment inputs. The back of the D SERIES-J3M is finished with a metal enclosure clearly labeled for easy installation.
The D SERIES-J3M fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U or WB-2U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.
Main Features
- Wall Mounted Audio Inputs
- XLR Microphone Input with Gold Contacts
- Mini-Jack Line Inputs
- Hum Cancellation on Unbalanced Line Inputs
- Transformer Isolation for Unbalanced Line Inputs
- Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs
General Information
Specifications
ADI Part Number RL-DJ3M Brand Name Radio Design Labs Manufacturer Radio Design Labs, Inc Manufacturer Part Number D-J3M Product Model D-J3M Product Name Mic/Line Input Assembly Product Series D Product Type Faceplate
TAA Compliant No
Color White Depth 2.20" Height 4.10" Weight 5.76oz Width 1.70"
Environmentally Friendly Yes
