Image of RL-RUMX4LT
Shop all Radio Design Labs

RDL RU-MX4LT RACK-UP Series Professional 4-Channel Line Level Mixer with Transformer, Microphone and Line Output

RU-MX4LT|RL-RUMX4LT
Shop all Radio Design Labs

RDL RU-MX4LT RACK-UP Series Professional 4-Channel Line Level Mixer with Transformer, Microphone and Line Output

RU-MX4LT|RL-RUMX4LT
Key Features
  • 4-Channel Line Level Mixer with Transformer
  • Supports Balanced XLR and Unbalanced Phono Inputs
  • Front Panel Adjustable Audio Levels
Key Features
  • 4-Channel Line Level Mixer with Transformer
  • Supports Balanced XLR and Unbalanced Phono Inputs
  • Front Panel Adjustable Audio Levels

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • 4-Channel Line Level Mixer with Transformer
  • Supports Balanced XLR and Unbalanced Phono Inputs
  • Front Panel Adjustable Audio Levels
Radio Design Labs

RDL RU-MX4LT RACK-UP Series Professional 4-Channel Line Level Mixer with Transformer, Microphone and Line Output

RU-MX4LT | RL-RUMX4LT

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

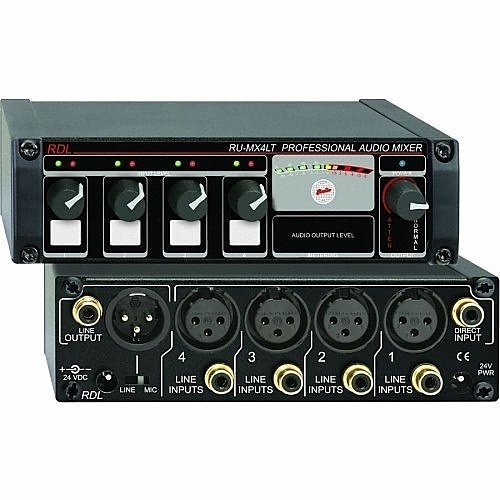

The RU-MX4L is the ideal choice in many applications where a combination of balanced and/or unbalanced line-level signals needs to be mixed. Balanced connections use XLR connectors. Unbalanced signals are coupled through phono jacks. Each of the four RU-MX4L inputs can accept either a balanced XLR line-level input or an unbalanced line-level phono jack input. The unbalanced phono jack LINE OUTPUT from one RU-MX4L may connect to the unbalanced input of other equipment, or may be connected to the DIRECT input of another RU-MX4L or an RU-MX4 to expand mixing capabilities. The RU-MX4L provides one balanced output, switchable for mic or line level. Audio levels are adjustable on the front panel. Each input channel is equipped with a front-panel dual-LED VU meter that follows standard VU ballistics. The final mix is displayed on an LED string VU meter featuring a visually comfortable arc motion. A factory installed output isolation transformer is available by ordering the RU-MX4LT.

Main Features

  • 4-Channel Line Level Mixer with Transformer
  • Supports Balanced XLR and Unbalanced Phono Inputs
  • Front Panel Adjustable Audio Levels
  • Dual-LED VU Meter for Each Input Channel
  • Switchable Mic or Line Level Balanced Output
  • LED String VU Meter with Arc Motion Display
  • Output Isolation Transformer Available

General Information

Name: RDL RU-MX4LT RACK-UP Series Professional 4-Channel Line Level Mixer with Transformer, Microphone and Line Output
Category: Radio Design Labs, Pro AV, Commercial Audio, Pro Audio Mixers
UPC Code: 813721013095
Country of Origin: United States. Country of origin is subject to change.

Specifications
