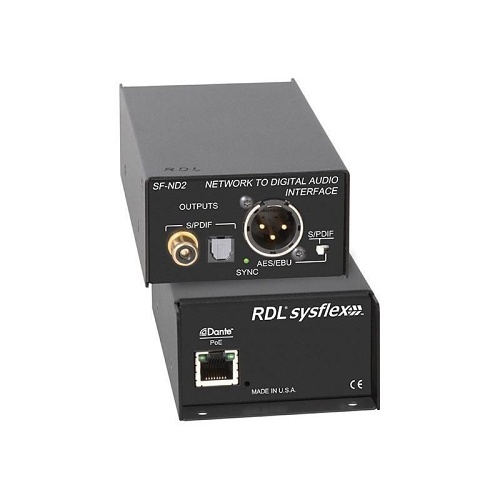

Image of RL-SFND2

RDL SF-ND2 Network to Digital Audio Interface, 2-Channel Dante Network to Stereo Digital Audio Output

SF-ND2|RL-SFND2

RDL SF-ND2 Network to Digital Audio Interface, 2-Channel Dante Network to Stereo Digital Audio Output

SF-ND2|RL-SFND2
Key Features
  • Converts 2 Dante network audio signals to Left / Right digital audio
  • AES / EBU or S / PDIF coaxial or optical output
  • Selectable Dante sample rates; 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Key Features
  • Converts 2 Dante network audio signals to Left / Right digital audio
  • AES / EBU or S / PDIF coaxial or optical output
  • Selectable Dante sample rates; 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Converts 2 Dante network audio signals to Left / Right digital audio
  • AES / EBU or S / PDIF coaxial or optical output
  • Selectable Dante sample rates; 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Radio Design Labs

RDL SF-ND2 Network to Digital Audio Interface, 2-Channel Dante Network to Stereo Digital Audio Output

SF-ND2 | RL-SFND2

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

The SF-ND2 is a digital audio interface that converts two Dante network audio channels to a stereo digital audio output. The output is switch-selectable to provide an AES/EBU on XLR, or coaxial and optical S/PDIF. The switch enables the appropriate output jack and any required electrical and data format conversion. Special software is not required to configure the module. The SF-ND2 is a professional grade product for studio quality performance. The SF-ND2 is PoE powered. Valid PoE power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit. The SF-ND2 is constructed in a durable, professional all-metal enclosure suitable for free-standing, surface-mounted or rack-mounted operation. This full-featured SYSFLEX product is engineered and manufactured in the U.S.A for continuous duty in demanding installations. The versatility of SYSFLEX products adds enormous flexibility in the design and installation of professional A/V systems.

Main Features

  • Converts 2 Dante network audio signals to Left / Right digital audio
  • AES / EBU or S / PDIF coaxial or optical output
  • Selectable Dante sample rates; 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Digital audio output sample rate equals Dante sample rate
  • Transformer-isolated AES / EBU output
  • Dante audio signals remain in the digital domain through the output
  • Special software not required for module setup
  • LED Indicator for valid power and Network Sync
  • Operation from PoE Power (Class 0, IEEE 802.3af)
  • Equipped for SysFlex rack mounting or surface mounting

General Information

Name: RDL SF-ND2 Network to Digital Audio Interface, 2-Channel Dante Network to Stereo Digital Audio Output
Category: Radio Design Labs, Pro AV, Commercial Audio, Pro Audio Processors
UPC Code: 999999542944
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources
