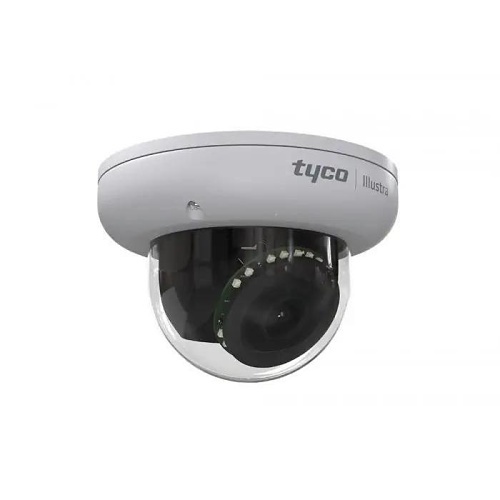

Illustra IPS02-D12-OI04 Pro Gen4 2MP IP Indoor / Outdoor IR Dome Camera, 2.7-13.5mm Lens, IK10, IP67
IPS02-D12-OI04
|RO-IP2D12OI4
Shop All Illustra
Illustra IPS02-D12-OI04 Pro Gen4 2MP IP Indoor / Outdoor IR Dome Camera, 2.7-13.5mm Lens, IK10, IP67
IPS02-D12-OI04 | RO-IP2D12OI4
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Illustra Pro Gen 4 cameras are ready for the rise of intelligence at the edge. With built-in AI based object classification, events can be narrowed to classes such as person, car, bus, motorcycle and more. Forensic searches become more accurate and situational awareness becomes more automated with fewer missed incidences and false alarms. Choose from a variety of analytic rules to customize the solution that will be most beneficial to your business and begin gathering transformative data instantly.
Main Features
- Built in AI delivers accurate object classification,powerful situational awareness and security automation
- Integrated recess mount, universal back-box, a range of IO options including Micro HDMI plus WIFI configuration via the Illustra Tools App
- Exposure profile settings allow the mini-dome to adapt to scenarios such as license plate recognition,gaming and more
- Ultra low light capabilities to maintain color image quality without IR
General Information
Name: Illustra IPS02-D12-OI04 Pro Gen4 2MP IP Indoor / Outdoor IR Dome Camera, 2.7-13.5mm Lens, IK10, IP67
Category: Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 840456175217
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number RO-IP2D12OI4 Brand Name Illustra Manufacturer Part Number IPS02-D12-OI04 Product Line Illustra Product Series Pro Gen4
Effective Camera Resolution 2MP Field of View Horizontal, Vertical Lens Type Varifocal Maximum Aperture f/1.4 Maximum Frame Rate 60 fps Minimum Focal Length 2.7mm Night Vision Yes Night Vision Type Infrared (IR) Video Formats H.264, H.265, IntelliZip, MJPEG
Night Vision Distance 164' Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67
Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 149°F Minimum Operating Temperature -58°F Operating Humidity 0-90%
Longest Shutter Speed 1/4 Second Minimum Illumination 0 lux, 0.0001, 0.01 Shortest Shutter Speed 1/10000 Second
HDMI Yes
Focal Length 2.7-13.5mm Lens Included Yes Maximum Focal Length 13.5mm Minimum Aperture f/2.8
Color White Form Factor Mini Dome Height 5.3"
Input Voltage 24V AC
Diameter 5.4"
Storage Type Memory Card
Environmental Certification AS/NZS CISPR 32 Class A, CSA 22.2 No. 60950, EN50130-3, EN55024, EN55032 Class A, EN60950-1, FCC Part 15 Class A, ICES-003/NMB-003 Class A, IEC 60950-1, RoHS, UL60950-1, WEEE Impact Protection Rating IK10 Indoor/Outdoor Indoor, Outdoor
