Switchcraft 370DI Passive A/V Direct Box, RCA 3.5mm Inputs, Locking Male 3 pin XLR Output, Ground Lift and -20 db Pad
370DI
|S7-370DI
Shop All Switchcraft
Switchcraft 370DI Passive A/V Direct Box, RCA 3.5mm Inputs, Locking Male 3 pin XLR Output, Ground Lift and -20 db Pad
370DI | S7-370DI
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

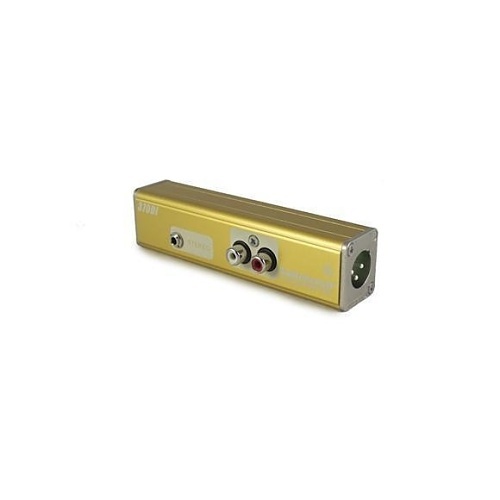

The Switchcraft 370DI is a passive A/V direct box designed to convert unbalanced stereo outputs from devices such as cell phones, tablets, and laptops to a balanced mono line level suitable for audio consoles and house sound systems. It features RCA and 3.5mm inputs with a locking male 3 pin XLR output. Included are ground lift and -20 dB pad functions to ensure compatibility and reduce noise interference. This model offers reliable performance for connecting consumer gear to professional audio equipment.
Main Features
- Includes RCA and 3.5mm unbalanced stereo inputs
- Locking Male 3 pin XLR balanced mono output
- Ground lift switch
- -20 dB pad for signal attenuation
- Converts consumer audio outputs to balanced line level
- Passive design, no power required
- Compatible with cell phones, tablets, laptops, and consumer gear
General Information
Name: Switchcraft 370DI Passive A/V Direct Box, RCA 3.5mm Inputs, Locking Male 3 pin XLR Output, Ground Lift and -20 db Pad
Category: Switchcraft, Pro AV, Commercial Audio, Pro Accessories & Mounts
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number S7-370DI Brand Name Switchcraft Manufacturer Part Number 370DI Product Model 370DI Product Name Passive A/V Direct Box - Inputs-RCA, 3.5mm- Output- Locking Male 3 pin XLR- Ground Lift -20db Pad Product Type Audio and Video Console/Extender
Color Yellow
Environmental Certification REACH, RoHS Environmentally Friendly Yes
