STI SS2008EM-EN Stopper Station Button, No Cover, Pneumatic Illuminated, EMERGENCY Label, Red
SS2008EM-EN
|SF-2008EMEN
Shop all Safety Technology International
STI SS2008EM-EN Stopper Station Button, No Cover, Pneumatic Illuminated, EMERGENCY Label, Red
SS2008EM-EN | SF-2008EMEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

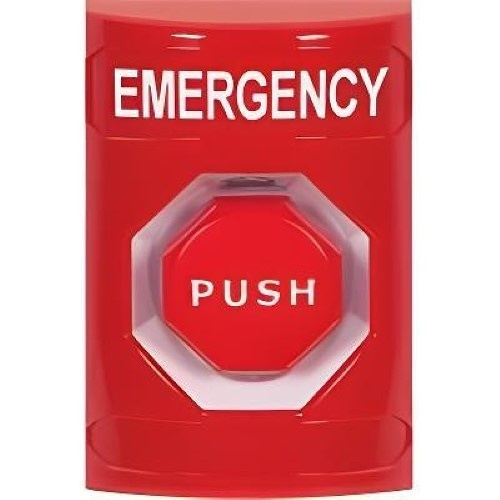

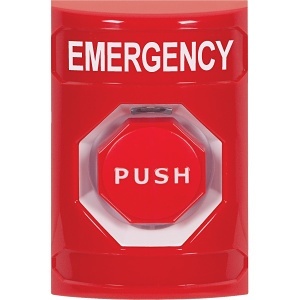

This Stopper® Station, pneumatic push button is housed in a curved shell with EMERGENCY messaging. Switch rating 10 amps resistive at 120-240 VAC and has a timer range: 2 - 60 seconds (± 15%) with repeat accuracy ± 10%. Indoor use only. Not recommended for outdoor/water applications, temperature range of button 15° to 120°F (-9° to +49°C). Pneumatic adjustable timer opens or closes a circuit and has a timed delay before reset. No electricity to operate. Multicolor illumination bar 12-24VAC/VDC LED (LED color options: red, green, and white). Ideal for security applications. 1 Form Z, 1 N.O. and 1 N.C. contact. Part of the Stopper® Station series, which is a multipurpose push button series that covers a wide range of applications both indoors and outdoors. This product's unique, curved design helps protect against accidental activation.
Main Features
- Pneumatic push button activation
- Raised EMERGENCY label
- LED illuminates green, red or white
- Opens or closes a circuit and has a timed delay before reset
- No electricity to operate
- Switch rating 10 amps @ 240 VAC resistive and has a timer range: 2 - 60 seconds (± 15%)
- Not UL Listed
General Information
Name: STI SS2008EM-EN Stopper Station Button, No Cover, Pneumatic Illuminated, EMERGENCY Label, Red
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code: 662950500605
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SF-2008EMEN Brand Name Safety Technology International Cover Yes Manufacturer Part Number SS2008EM-EN Product Line Stopper Station Product Series SS2
Material Polycarbonate
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°F
Depth 1.62" Height 4.86" Width 3.22"
Input Voltage 125V AC, 250V AC
Print/Message EMERGENCY
Limited Warranty 3-Year
ADA Compliant Yes
